VBF1GE | Schneider Electric

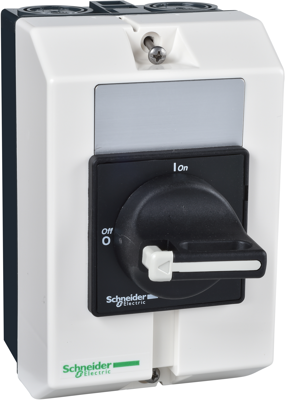

Main switch, rotary actuator, 3 pole, 25 A, (W x H x D) 90 x 146 x 131 mm, VBF1GE

Order No.: 04P8197
EAN: 3389110166569
MPN:
VBF1GE
VBF1GE Schneider Electric Circuit Breakers
Image may differ
Unit Price (€ / pc.)
48.0998 € *
Available in 3 Days: 19 pcs. - if ordered today
Total Price:
48.10 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
48.0998 €

Main switch, VBF1GE, Schneider Electric

TeSys enclosed starter with switch disconnector, 3 poles, Ithe 25 A 690 V, for main switching in motor applications AC-23 up to 11kW@400V. Enclosure providing IP65 protection, fitted with a black rotary handle and black front plate, padlockable (padlocks not included). It includes a 3-pole Vario switch body V1 with 2 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60204 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh).

Technical specifications
Filter Property Value
Width 90 mm
Product type main switch
Degree of protection (IP) IP65
Pin number 3 pole
Height 146 mm
Depth 131 mm
Actuator rotary actuator
Permanent current 25 A
Logistics
Property Value
Customs tariff number 85371098
Country of origin CZ
Compliance
Property Value
Substance description Lead
Sustainable Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
