LV848023 | Schneider Electric
Basic switch, Push actuator, 4 pole, 1000 A, 1000 V, (W x H x D) 537 x 352 x 300 mm, fixed mounting, LV848023
Unit Price (€ / pc.)
5,631.675 € *
Available: 0 pcs.
Leadtime: On Request **

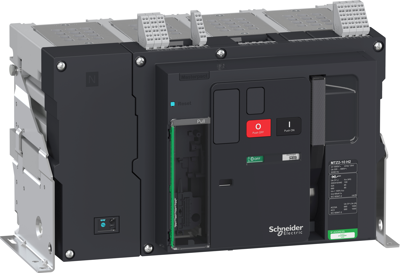

Circuit breaker, LV848023, Schneider Electric
Masterpact MTZ2 1000A H2 Icu=100kA/440V 4P basic circuit breaker fixed . Circuit breaker Masterpact MTZ2 10H2, 1000A, 4p fixed, without Micrologic. Series: Masterpact - Product name: Masterpact MTZ2 - Short name of the device: MTZ2 10 H2 - Product or component type: Circuit breaker - G
Technical specifications
| Actuator | Push actuator | |
| Width | 537 mm | |
| Permanent current | 1000 A | |
| Height | 352 mm | |
| Isolation voltage | 1000 V | |
| Assembly | fixed mounting | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP30 | |
| Depth | 300 mm |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85362090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| Sustainable | Yes |
