47210 | Schneider Electric
Circuit breaker, Push actuator, 3 pole, 800 A, 1000 V, (W x H x D) 288 x 322 x 277 mm, Drawout, 47210
Unit Price (€ / pc.)
2,240.9247 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2,240.92 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2,240.9247 €

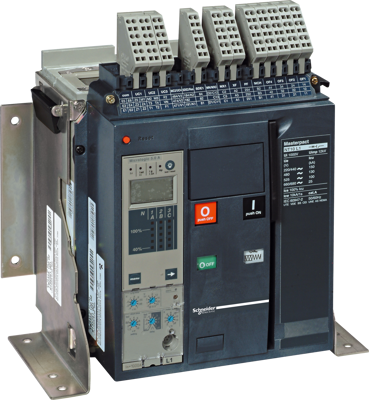

Circuit breaker, 47210, Schneider Electric
Masterpact NT08H1, 3 P, 800A, max. breaking capacity 42kA . Masterpact NT08H1, 3 P, 800A, max. breaking capacity 42kA. Product series: Masterpact NT - Product or component type: Base frame - Short designation of the device: Masterpact NT08 - Circuit breaker designation: Masterpact NT08 - Network
Technical specifications
| Actuator | Push actuator | |
| Width | 288 mm | |
| Permanent current | 800 A | |
| Height | 322 mm | |
| Isolation voltage | 1000 V | |
| Assembly | Drawout | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP30 | |
| Depth | 277 mm |
Download
Logistics
| Country of origin | NL |
| Customs tariff number | 85362090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead, lead monoxide (lead oxide) |
