47137 | Schneider Electric
Circuit breaker, Push actuator, 4 pole, 1000 A, 1000 V, (W x H x D) 346 x 301 x 196 mm, fixed mounting, 47137
Unit Price (€ / pc.)
5,378.0979 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
5,378.10 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5,378.0979 €

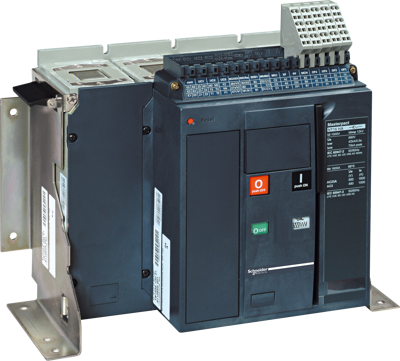

Circuit breaker, 47137, Schneider Electric
Masterpact NT10L1, 4 P, 1000A, max. breaking capacity 150kA . Masterpact NT10L1, 4 P, 1000A, max. breaking capacity 150kA. Product series: Masterpact NT - Product or component type: Base frame - Short designation of the device: Masterpact NT10 - Circuit breaker designation: Masterpact NT10 - Ne
Technical specifications
| Actuator | Push actuator | |
| Width | 346 mm | |
| Permanent current | 1000 A | |
| Height | 301 mm | |
| Isolation voltage | 1000 V | |
| Assembly | fixed mounting | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP30 | |
| Depth | 196 mm |
Download
Logistics
| Country of origin | NL |
| Customs tariff number | 85362090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead, lead monoxide (lead oxide) |
