31154 | Schneider Electric
Manual mains changeover switch, Rotary actuator, 3 pole, 630 A, 750 V, (W x H x D) 395 x 205 x 155 mm, fixed mounting, 31154
Unit Price (€ / pc.)
1,422.05 € *
Available: 0 pcs.
Leadtime: On Request **

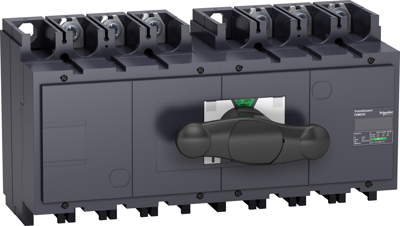

Manual mains switch, 31154, Schneider Electric
FXM630 is a complete manual source changeover assembly for two Compact INS630 3 poles switch disconnectors. It provides an easy way to implement source changeover functions with small size, taking up less room in the switchboard. The operational current is 630A at 690VAC 50/60Hz, in categories AC22A/AC23A. The operational current is 630A at 125VDC (2 poles in series) or at 250VDC (4 poles in series), in categories DC22A/DC23A. There is a single 3 position rotary handle that controls the two switch disconnectors (normal source ON, OFF, replacement source ON). A complete source changeover assembly can be ordered with a single catalogue number. A complete source changeover assembly can be ordered with a single catalogue number.
Technical specifications
| Actuator | Rotary actuator | |
| Width | 395 mm | |
| Permanent current | 630 A | |
| Height | 205 mm | |
| Isolation voltage | 750 V | |
| Assembly | fixed mounting | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP40 | |
| Depth | 155 mm |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85371091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
