31148 | Schneider Electric

Mains switch, manual, rotary actuator, 3 pole, 320 A, 750 V, (W x H x D) 395 x 205 x 155 mm, fixed mounting, 31148

Order No.: 01P3932
EAN: 3303430311485
MPN:
31148
31148 Schneider Electric Circuit Breakers

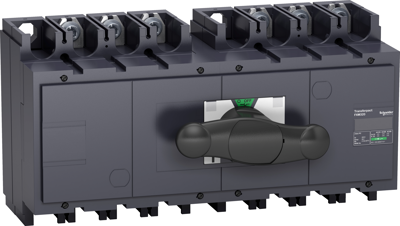

Image may differ
Unit Price (€ / pc.)
972.0872 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
972.09 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
972.0872 €

Manual mains switch, 31148, Schneider Electric

FXM320 is a complete manual source changeover assembly for two Compact INS320 3 poles switch disconnectors. It provides an easy way to implement source changeover functions with small size, taking up less room in the switchboard. The operational current is 320 A at 690 VAC 50/60 Hz, in categories AC22A/AC23A. The operational current is 320 A at 125VDC (2 poles in series) or at 250 VDC (4 poles in series), in categories DC22A/DC23A. There is a single 3 position rotary handle that controls the two switch disconnectors (normal source ON, OFF, replacement source ON). A complete source changeover assembly can be ordered with a single catalogue number. A complete source changeover assembly can be ordered with a single catalogue number.

Technical specifications
Filter Property Value
Pin number 3 pole
Actuator rotary actuator
Height 205 mm
Degree of protection (IP) IP40
Version manual
Assembly fixed mounting
Depth 155 mm
Width 395 mm
Permanent current 320 A
Isolation voltage 750 V
Product type mains switch
Logistics
Property Value
Customs tariff number 85371091
Country of origin FR
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
