28916 | Schneider Electric

Load-break switch, Rotary actuator, 3 pole, 40 A, 750 V, (W x H x D) 90 x 85 x 62.5 mm, fixed mounting, 28916

Order No.: 01P3754
EAN: 4099889272185
MPN:
28916
Series: Compact INS/INV
Schneider Electric
default L
Image may differ
Unit Price (€ / pc.)
81.7411 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
81.74 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
81.7411 €

Switch disconnector, 28916, Schneider Electric

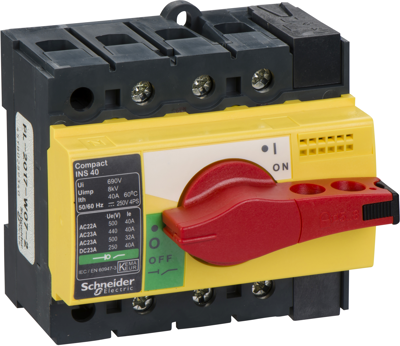

This Compact INS40 is a 3 poles non-automatic switch-disconnector with red rotary handle and yellow front. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 40 A at 415 VAC in categories AC22A and AC23A. The rated voltage is 500 VAC 50/60 Hz or 250 VDC. It can be used as an emergency-off device. For easy identification, it uses special colours stipulated by the standards. The red rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS40 is a class II insulation level front-face device as per IEC 60664 standard.

Technical specifications
Actuator Rotary actuator
Width 90 mm
Permanent current 40 A
Height 85 mm
Isolation voltage 750 V
Assembly fixed mounting
Pin number 3 pole
Degree of protection (IP) IP20
Depth 62.5 mm
Logistics
Country of origin PL
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
