PKY32G735 | Schneider Electric

CEE surface-mounted socket, 5 pole, 32 A/380-415 V, red, IP67, PKY32G735

Order No.: 04P5520
EAN: 4099889877526
MPN:
PKY32G735
Series: PratiKa

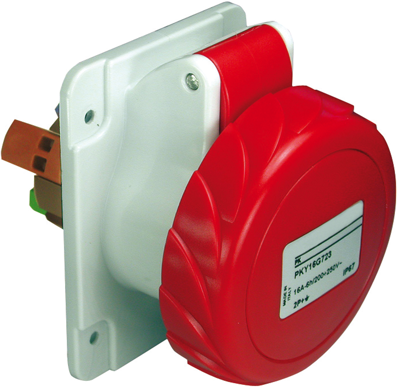

PKY32G735 Schneider Electric CEE Connectors Image 1

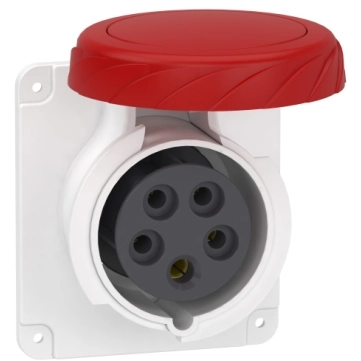

PKY32G735 Schneider Electric CEE Connectors Image 2
Image may differ
Unit Price (€ / pc.)
67.2112 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
67.21 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
67.2112 €

PratiKa socket, PKY32G735, Schneider Electric

This Pratika industrial socket with fast connection connection is straight panel mounted. It has 3P+N+E poles, rated current is 32A and the operating voltage is 400VAC. The dimensions of the base plate are (W) 102 mm x (H) 100 mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 32A is 2.5 mm² to 6 mm². The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.

Technical specifications
Pin number 5 pole
Connection clamp connection
Degree of protection (IP) IP67
Version surface-mounted socket
Nominal power 32 A/380-415 V
Colour red
Logistics
Country of origin IT
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
Sustainable Yes
SVHC free No
Substance description Lead
