PKX16W435 | Schneider Electric
CEE wall plug, 5 pole, 16 A/380-415 V, red, 6 h, IP44, PKX16W435
Unit Price (€ / pc.)
40.6147 € *
Standard delivery time from the manufacturer is: 1 Week

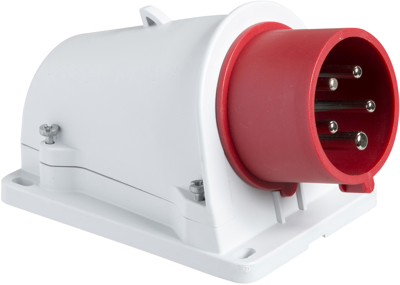

Pratika industrial plug, PKX16W435, Schneider Electric
This Pratika industrial plug with fast connection connection is angled wall mounted. It has 3P+N+E poles, rated current is 16A and the operating voltage is 400VAC. The dimensions of the base plate are (W) 90 mm x (H) 142 mm. The degree of protection is IP44 and IK08. The fire resistance is 750°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 16A is 1 mm² to 4 mm². The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | IDC connection | |
| Colour | red | |
| Pin number | 5 pole | |
| Degree of protection (IP) | IP44 | |
| Frequency range | 50 to 60 Hz | |
| Nominal power | 16 A/380-415 V | |
| Product type | wall plug | |
| Cable cross-section | 1.0-4.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| Sustainable | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
