PKX16W423 | Schneider Electric
CEE wall plug, 3 pole, 16 A/200-250 V, blue, 6 h, IP44, PKX16W423
Unit Price (€ / pc.)
34.2125 € *
Available in 3 Days: 10 pcs. - if ordered today

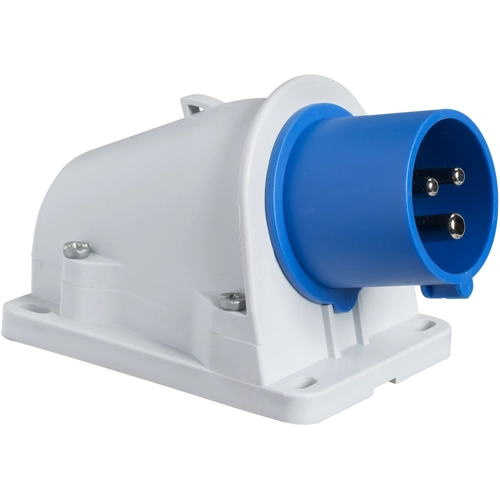

Pratika industrial plug, PKX16W423, Schneider Electric
This Pratika industrial plug with fast connection connection is angled wall mounted. It has 2P+E poles, rated current is 16A and the operating voltage is 230VAC. The dimensions of the base plate are (W) 75 mm x (H) 122 mm. The degree of protection is IP44 and IK08. The fire resistance is 750°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 16A is 1 mm² to 4 mm². The color of the socket is light grey (RAL 7035) with blue easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Frequency range | 50 to 60 Hz | |
| Pin number | 3 pole | |
| Cable cross-section | 1.0-4.0 mm² | |
| Degree of protection (IP) | IP44 | |
| Nominal power | 16 A/200-250 V | |
| Connection | IDC connection | |
| Colour | blue | |
| Product type | wall plug |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
