Charging station, EVH5A11N2C7, Schneider Electric

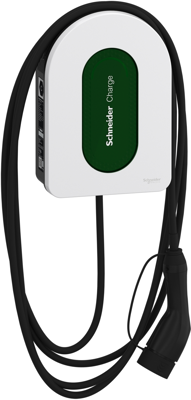

This charge product is a wall-mounted charging station for all electric vehicles compliant with the IEC61851-1 standard. It has an IP55 degree of protection and an IK10 impact resistance rating. The operating temperature range is between -35°C and 55°C. The output type is a 7-meter attached cable with a T2 socket-outlet at the end, installed at the bottom and top center of the station. The nominal output power is 11kW. It is supplied in three-phase (3P+N), with a rated charging current of 16A under 400VAC at 50Hz/60Hz frequency. It can be used with TN-S, TT, or IT earthing systems. The charging station is easy to install and requires no special tools. It is recommended for private residential use, whether installed in a garage or mounted externally on a wall. The dimensions are (W) 244mm x (H) 352mm x (D) 107mm, and the product weight is 5.1kg (without the cable). Its color is white (RAL 9003) with green accents. The unit includes built-in protection against residual direct current (RDC-DD, or Residual Direct Current Detecting Device).

There is no access control required to operate the charging station. An LED changes color-red, green, or blue-to indicate the charging status directly on the device. The station dynamically adjusts in real time the maximum power allocated to the electric vehicle based on overall household consumption, and it adapts charging load in accordance with Off Peak/Peak hours provided by the TIC interface. The charger is compatible with the Wiser by Schneider Electric mobile app, allowing users to start, monitor, and control the charging process remotely. The OCPP 1.6 communication protocol is supported for connection to supervision systems or third-party cloud platforms. Internet connectivity is available through either Wi-Fi or RJ45 Ethernet cable.

Features

• User friendly - Charge your car without disrupting your lifestyle, keeping your installation running as needed
• Fast - Speed-up your charging duration
• Sustainable - Charge your car prioritizing renewable energy thanks to Wiser scheduling function
• Cost efficient - Wiser enable to choose right time to charge avoiding peak tariffs and using renewable energy
• Peace of mind - Worldwide customer care center
