ZB5FV013C0 | Schneider Electric
Signal light, for universal LED, illuminable, waistband round, white, front ring light gray, mounting Ø 30.5 mm, ZB5FV013C0
Unit Price (€ / pc.)
6.2713 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
6.27 € *
Price list
Quantity
Price per unit*
1 pcs.
6.2713 €
5 pcs.
5.9857 €
10 pcs.
5.7239 €
15 pcs.
5.4026 €
20 pcs.
5.1170 €
*incl. VAT plus shipping costs
Subject to prior sale

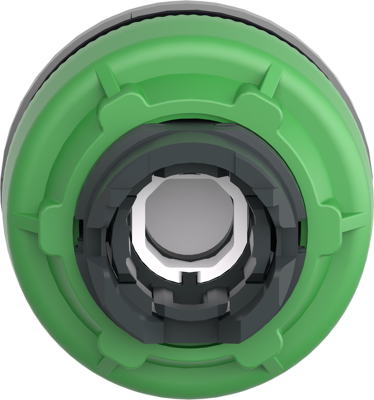

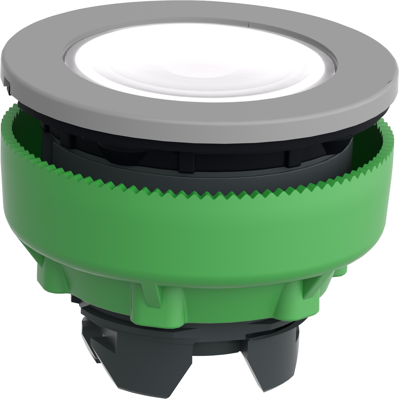

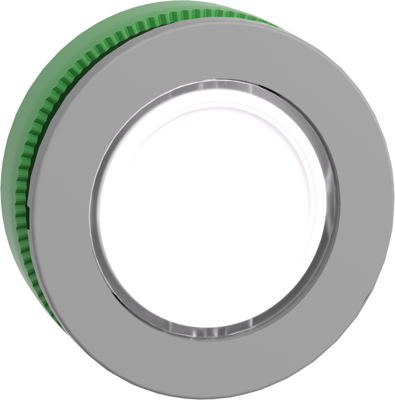

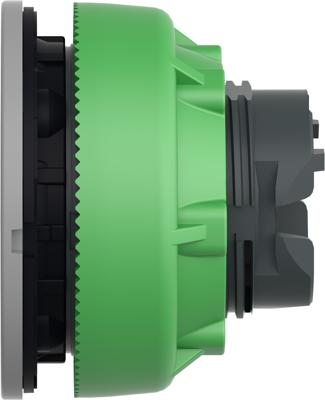

Indicator light, ZB5FV013C0, Schneider Electric
This pilot light head for universal LED provides clear visual feedback on the status of your machines. It is easily installed into a 30mm diameter panel cut-outs. It is clearly distinguishable visually at a distance due to clear colors and illumination via universal LED, enabling complex machine statuses to be read at a glance.
Features
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
- A wide choice of contact blocks for general purposes or specific applications
- Excellent mechanical connection with operator head
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | for universal LED | |
| Protection class | IP66/IP67 | |
| Installation diameter | 30.5 mm | |
| Front ring colour | light gray | |
| can be illuminated | Yes | |
| Collar shape of the front frame | round | |
| Product type | signal light | |
| Actuator colour | white |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
