ZB5FG04D | Schneider Electric
Key switch, 3 positions, unlit, latching, waistband round, black, front ring dark gray, 3 x 45°, mounting Ø 30.5 mm, ZB5FG04D
Unit Price (€ / pc.)
38.9487 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
38.95 € *
Price list
Quantity
Price per unit*
1 pcs.
38.9487 €
3 pcs.
37.3898 €
5 pcs.
35.9499 €
*incl. VAT plus shipping costs
Subject to prior sale

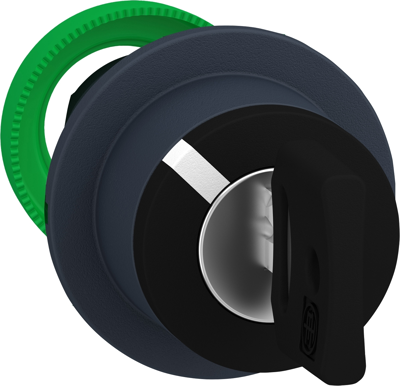

Key switch, ZB5FG04D, Schneider Electric
This 30mm key selector switch head, dom 8d1 provides an ergonomic interface for controlling your machine. It is easily installed/replaced on compatible complete key selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Actuator colour | black | |
| Protection class | IP66/IP67/IP69/IP69K | |
| Type of mounting | flush mounting | |
| Collar shape of the front frame | round | |
| Front ring colour | dark gray | |
| Version | 3 positions | |
| Contact function | latching | |
| Product type | key switch | |
| Rotation angle | 3 x 45° | |
| can be illuminated | No | |
| Installation diameter | 30.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
