ZB5FA0 | Schneider Electric
Pushbutton, unlabeled, unlit, groping, waistband round, front ring dark gray, mounting Ø 30.5 mm, ZB5FA0
Unit Price (€ / pc.)
5.4026 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
5.40 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4026 €
5 pcs.
5.1527 €
10 pcs.
4.9266 €
20 pcs.
4.6529 €
30 pcs.
4.4149 €
*incl. VAT plus shipping costs
Subject to prior sale

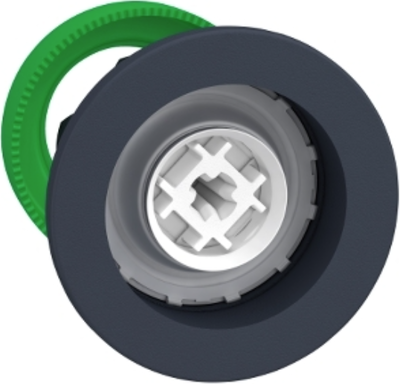

Push button head, ZB5FA0, Schneider Electric
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It comes with antimicrobial characteristics. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color and marking. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
Features
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- A wide choice of contact blocks for general purposes or specific applications (low current, standard)
- Excellent mechanical connection with operator head
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Collar shape of the front frame | round | |
| Protection class | IP66/IP67/IP69/IP69K | |
| Contact function | groping | |
| Front ring colour | dark gray | |
| can be illuminated | No | |
| Installation depth | 30 mm | |
| Installation diameter | 30.5 mm | |
| Product type | pushbutton | |
| Version | unlabeled | |
| Installation height | 37 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
