ZB5AH63C0 | Schneider Electric
Pushbutton, for universal LED, illuminable, latching, waistband round, blue, front ring light gray, mounting Ø 22 mm, ZB5AH63C0
Unit Price (€ / pc.)
21.7889 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
21.79 € *
Price list
Quantity
Price per unit*
1 pcs.
21.7889 €
3 pcs.
20.8369 €
5 pcs.
19.6945 €
10 pcs.
18.6711 €
*incl. VAT plus shipping costs
Subject to prior sale

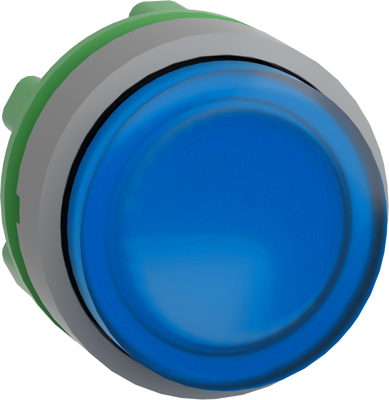

Illuminated push button head, ZB5AH63C0, Schneider Electric
This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and by touch due to projecting element, minimizing errors in machine control. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
Features
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- Excellent mechanical connection with operator head
- A wide choice of contact blocks for general purposes or specific applications
- Large set of accessories to customize your panels
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Collar shape of the front frame | round | |
| Actuator colour | blue | |
| Contact function | latching | |
| Installation height | 29 mm | |
| can be illuminated | Yes | |
| Protection class | IP66 | |
| Front ring colour | light gray | |
| Installation depth | 33 mm | |
| Version | for universal LED | |
| Installation diameter | 22 mm | |
| Product type | pushbutton |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
