ZB5AH33 | Schneider Electric
Pushbutton, illuminable, groping, waistband round, green, front ring black, mounting Ø 22 mm, ZB5AH33
Unit Price (€ / pc.)
17.5525 € *
Standard delivery time from the manufacturer is: 2 Weeks

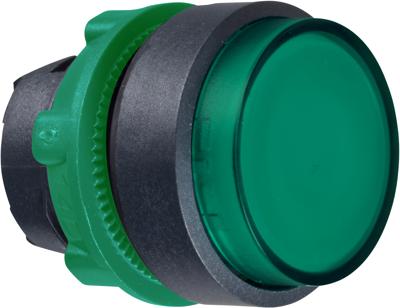

Front element, ZB5AH33, Schneider Electric
This green projecting illuminated button head for integral LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color. It is also distinguishable by touch due to projecting element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| can be illuminated | Yes | |
| Protection class | IP66 | |
| Installation diameter | 22 mm | |
| Front ring colour | black | |
| Actuator colour | green | |
| Product type | pushbutton | |
| Collar shape of the front frame | round | |
| Contact function | groping |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Sustainable | Yes |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
