ZB5AH083C0 | Schneider Electric
Pushbutton, for universal LED, illuminable, latching, waistband round, yellow, front ring light gray, mounting Ø 22 mm, ZB5AH083C0
Unit Price (€ / pc.)
17.0646 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
17.06 € *
Price list
Quantity
Price per unit*
1 pcs.
17.0646 €
3 pcs.
16.3030 €
5 pcs.
15.6128 €
10 pcs.
14.7679 €
*incl. VAT plus shipping costs
Subject to prior sale

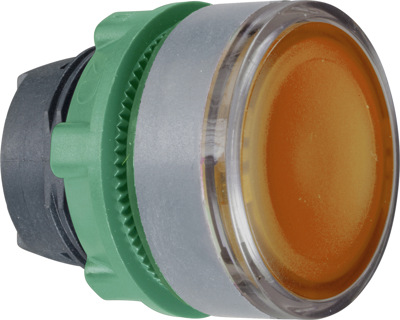

Illuminated push button head, ZB5AH083C0, Schneider Electric
This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illum. clear color and by touch due to flush element, minimizing errors in machine control. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
Features
- Compatible with universal LED block to be used for all colors
- Improved color intensity and brightness
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- A wide choice of contact blocks for general purposes or specific applications (low current, standard)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Installation depth | 30 mm | |
| Actuator colour | yellow | |
| Protection class | IP66/IP67 | |
| Installation height | 29 mm | |
| Collar shape of the front frame | round | |
| Front ring colour | light gray | |
| Version | for universal LED | |
| Contact function | latching | |
| Product type | pushbutton | |
| can be illuminated | Yes | |
| Installation diameter | 22 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
