ZB4FG6 | Schneider Electric
Key switch, unlit, groping, waistband round, black, 2 x 90°, mounting Ø 30.5 mm, ZB4FG6
Unit Price (€ / pc.)
41.4001 € *
Standard delivery time from the manufacturer is: 1 Week

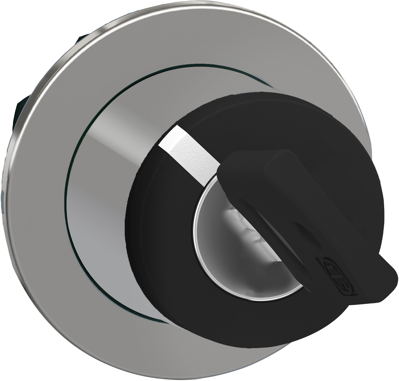

Selector switch head, ZB4FG6, Schneider Electric
This 30.5 mm key selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete key selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Protection class | IP66 | |
| Contact function | groping | |
| Installation diameter | 30.5 mm | |
| Rotation angle | 2 x 90° | |
| Collar shape of the front frame | round | |
| Actuator colour | black | |
| can be illuminated | No | |
| Product type | key switch |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
