ZB4FG5 | Schneider Electric

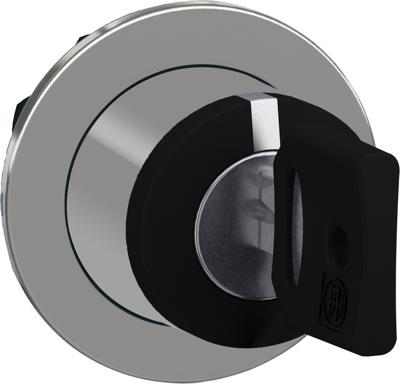

Key switch, 3 positions, unlit, latching, waistband round, black, front ring metal, 3 x 45°, mounting Ø 30.5 mm, ZB4FG5
Unit Price (€ / pc.)
34.9979 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
35.00 € *
Price list
Quantity
Price per unit*
1 pcs.
34.9979 €
3 pcs.
33.6056 €
5 pcs.
32.3085 €
*incl. VAT plus shipping costs
Subject to prior sale
Key switch, ZB4FG5, Schneider Electric
This 30.5 mm key selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete key selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
Features
- Chromium plated metal bezel
- Wide range of operating temperature from -40°C to 70°C
- Class I conforming to IEC 60536
- Shock protection level up to IK06 rating
- High vibration resistance with shake proof terminal screws
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Actuator colour | black | |
| Version | 3 positions | |
| Type of mounting | flush mounting | |
| Rotation angle | 3 x 45° | |
| can be illuminated | No | |
| Protection class | IP66/IP67/IP69/IP69K | |
| Contact function | latching | |
| Product type | key switch | |
| Collar shape of the front frame | round | |
| Front ring colour | metal | |
| Installation diameter | 30.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
