ZB4FD79 | Schneider Electric
Toggle switch, unlit, latching, waistband round, black, 3 x 45°, mounting Ø 30.5 mm, ZB4FD79
Order No.: 06P7711
EAN: 4099889242232
MPN:
ZB4FD79
Unit Price (€ / pc.)
19.2661 € *
Standard delivery time from the manufacturer is: 2 Weeks

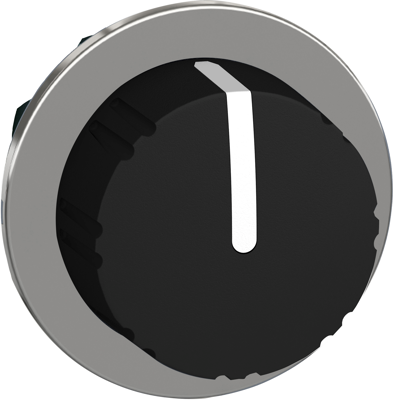

Selector switch head, ZB4FD79, Schneider Electric
This 30.5 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| can be illuminated | No | |
| Rotation angle | 3 x 45° | |
| Protection class | IP66 | |
| Installation diameter | 30.5 mm | |
| Actuator colour | black | |
| Product type | front element | |
| Collar shape of the front frame | round | |
| Contact function | latching |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Sustainable | Yes |
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
