XB7EV04MP | Schneider Electric
Signal light, waistband round, red, mounting Ø 22 mm, XB7EV04MP
Unit Price (€ / pc.)
14.0777 € *
Available: 0 pcs.
Leadtime: On Request **

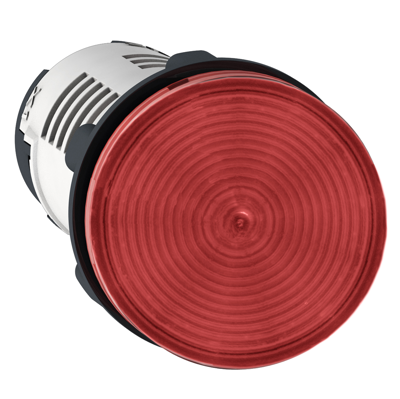

Indicator light, XB7EV04MP, Schneider Electric
This Harmony XB7, plain lens monolithic red pilot light is supplied with 230V AC, uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Technical specifications
| Connection | screw connection | |
| Version | signal light | |
| Collar shape of the front frame | round | |
| Installation diameter | 22 mm | |
| Actuator colour | red | |
| Protection class | IP65 |
Download
Logistics
| Country of origin | ID |
| Customs tariff number | 85318070 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
