XB5FG33 | Schneider Electric
Key switch, unlit, latching, 2 Form A (N/O), waistband round, black, front ring dark gray, 45°, mounting Ø 30.5 mm, XB5FG33
Unit Price (€ / pc.)
48.1831 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
48.18 € *
Price list
Quantity
Price per unit*
1 pcs.
48.1831 €
5 pcs.
46.8860 €
*incl. VAT plus shipping costs
Subject to prior sale

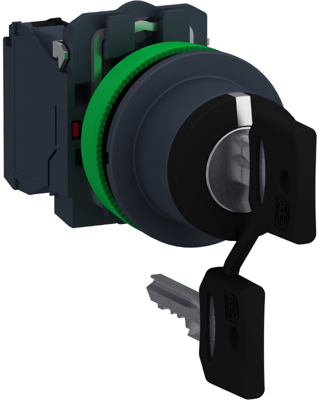

Key switch, XB5FG33, Schneider Electric
This flush mounted key switch has a mounting diameter of 30.5 mm. This black key switch is compatible with key number 455 and supports 3 positions ± 45 degree stay put. The switch has 2 NO contacts and a screw terminal for connection. The shape of the head is round. The bezel and the fixing collar is plactic. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13, and 4X, IK03, protection against solid objects, dust, water, and high impact is achieved.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Collar shape of the front frame | round | |
| Actuator colour | black | |
| Connection | screw connection | |
| Contact function | latching | |
| Rotation angle | 45° | |
| Latching switching function | 2 Form A (N/O) | |
| can be illuminated | No | |
| Contact material | silver alloy | |
| Protection class | IP66/IP67/IP69/IP69K | |
| Front ring colour | dark gray | |
| Installation diameter | 30.5 mm | |
| Product type | key switch |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
