XB5AVB3 | Schneider Electric

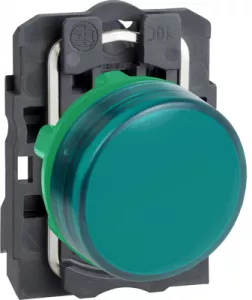

Signal light, illuminable, waistband round, green, front ring black, mounting Ø 22 mm, XB5AVB3
Unit Price (€ / pc.)
15.7437 € *
Available: 26 pcs.
Leadtime: 1 Week **
Total Price:
15.74 € *
Price list
Quantity
Price per unit*
1 pcs.
15.7437 €
10 pcs.
15.3153 €
*incl. VAT plus shipping costs
**Subject to prior sale
XB5AVB3 from Schneider Electric at Bürklin Elektronik
On our site you will find detailed information about the product XB5AVB3 from Schneider Electric.Indicator lamp, green, +LED 24V AC/DC - XB5AVB3 from Schneider Electric
Control and signalling devices made of plastic, diameter 22mm. The control and signalling devices designed for industrial applications combine simple installation with great flexibility and numerous design versions.The technical features of XB5AVB3 from Schneider Electric at a glance
- Number of indicator lights: 1
- Design of the socket: LED
- Design of the lens: flat
- Design of the electrical connection: Screw connection
- Design of the lens: round
- Rated operating voltage Ue 1: 24 V
- Width of the opening: 0 mm
- Color of the lens: green
- Colour of front ring: other
- Height of the opening: 0 mm
- Hole diameter: 22 mm
- With front ring: No
- With illuminant: Yes
- Protection class (IP): IP66
- Type of voltage: AC/DC
- Material of the front ring: other
Technical specifications
| Connection | screw connection | |
| Version | signal light | |
| can be illuminated | Yes | |
| Collar shape of the front frame | round | |
| Installation diameter | 22 mm | |
| Installation height | 42 mm | |
| Installation depth | 54 mm | |
| Actuator colour | green | |
| Front ring colour | black | |
| Protection class | IP66 |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85318070 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| Sustainable | Yes |
