XB5AP51 | Schneider Electric
Pushbutton, unlit, groping, 1 Form A (N/O), waistband round, yellow, front ring black, mounting Ø 22 mm, XB5AP51
Unit Price (€ / pc.)
14.399 € *
Standard delivery time from the manufacturer is: 2 Weeks

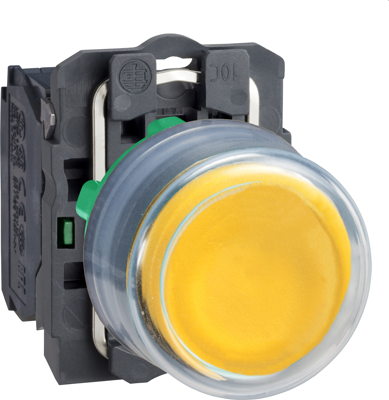

Push button, XB5AP51, Schneider Electric
This Harmony XB5, clear silicone booted modular yellow push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This silicone booted push button provides a simple solution to comply with hygiene requirement in food, beverage industries as well as healthcare and pharmaceuticals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) | |
| Contact material | silver alloy | |
| Protection class | IP66 | |
| Connection | screw connection | |
| Contact function | groping | |
| Installation diameter | 22 mm | |
| Collar shape of the front frame | round | |
| Actuator colour | yellow | |
| Front ring colour | black | |
| can be illuminated | No | |
| Product type | pushbutton |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
