XB5AA55C0 | Schneider Electric
Pushbutton, unlabeled, unlit, groping, 1 Form A (N/O) + 1 Form B (N/C), waistband round, yellow, front ring light gray, mounting Ø 22.5 mm, XB5AA55C0
Unit Price (€ / pc.)
16.2316 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
16.23 € *
Price list
Quantity
Price per unit*
1 pcs.
16.2316 €
3 pcs.
15.5057 €
5 pcs.
14.8393 €
10 pcs.
14.0420 €
*incl. VAT plus shipping costs
Subject to prior sale

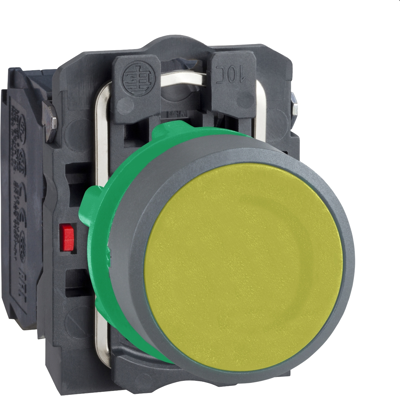

Push button, XB5AA55C0, Schneider Electric
This push-button provides a simple and robust control to machines and processes. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Installation depth | 52 mm | |
| Actuator colour | yellow | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Protection class | IP66/IP67 | |
| Contact material | silver alloy | |
| Installation height | 42 mm | |
| Collar shape of the front frame | round | |
| Front ring colour | light gray | |
| Version | unlabeled | |
| Contact function | groping | |
| Product type | pushbutton | |
| can be illuminated | No | |
| Installation diameter | 22.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
