XB5AA31 | Schneider Electric

Pushbutton, unlit, groping, 1 Form A (N/O), waistband round, green, front ring dark gray, mounting Ø 22 mm, XB5AA31

Order No.: 06N4503
EAN: 3389110903409
MPN:
XB5AA31
3389110903409
Series: Harmony XB5
XB5AA31 Schneider Electric Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
10.2221 € *
Available: 4 pcs.
Total Price:
10.22 € *
Price list
Quantity
Price per unit*
1 pcs.
10.2221 €
10 pcs.
9.9484 €
*incl. VAT plus shipping costs
Subject to prior sale

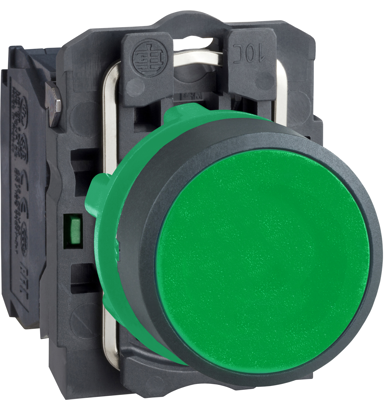

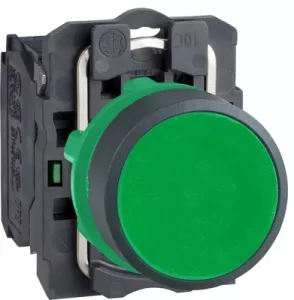

Pushbutton, XB5AA31, Schneider Electric

This Harmony XB5, modular green push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22 mm diameter cut-outs and connected with simple screw-clamp connections.

Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Technical specifications
Filter Property Value
Contact material silver alloy
Connection screw connection
Protection class IP66
Contact function groping
Product type pushbutton
Latching switching function 1 Form A (N/O)
Collar shape of the front frame round
can be illuminated No
Installation height 42 mm
Front ring colour dark gray
Installation diameter 22 mm
Installation depth 52 mm
Actuator colour green
Logistics
Property Value
Country of origin FR
Customs tariff number 85365080
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Sustainable Yes
SVHC free Yes
RoHS conform Yes
