XB5AA11C0 | Schneider Electric
Pushbutton, unlabeled, unlit, groping, 1 Form A (N/O), waistband round, white, front ring gray, mounting Ø 22.5 mm, XB5AA11C0
Unit Price (€ / pc.)
11.0313 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
11.03 € *
Price list
Quantity
Price per unit*
1 pcs.
11.0313 €
5 pcs.
10.5434 €
10 pcs.
10.0912 €
15 pcs.
9.5438 €
*incl. VAT plus shipping costs
Subject to prior sale

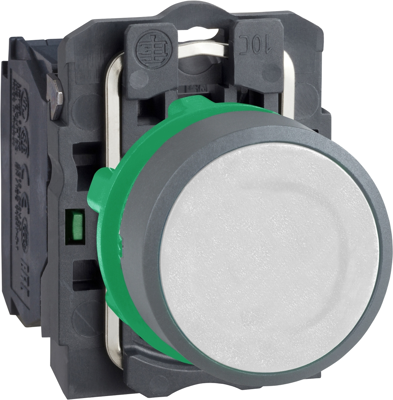

Push button, XB5AA11C0, Schneider Electric
This push-button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact function | groping | |
| Connection | screw connection | |
| Latching switching function | 1 Form A (N/O) | |
| Actuator colour | white | |
| Product type | pushbutton | |
| Installation depth | 52 mm | |
| Installation height | 42 mm | |
| can be illuminated | No | |
| Contact material | silver alloy | |
| Collar shape of the front frame | round | |
| Version | unlabeled | |
| Installation diameter | 22.5 mm | |
| Protection class | IP66/IP67 | |
| Front ring colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
