XB4RFA02 | Schneider Electric

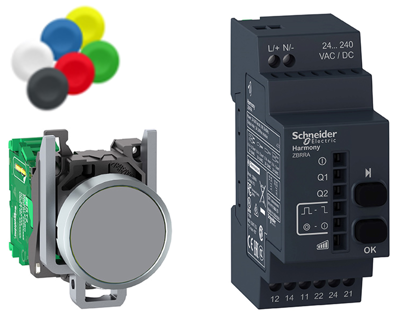

Pushbutton with transmitter and receiver, groping, waistband round, front ring silver, mounting Ø 22 mm, XB4RFA02
Unit Price (€ / pc.)
277.3533 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
XB4RFA02 from Schneider Electric at Bürklin Elektronik
On our site you will find detailed information about the product XB4RFA02 from Schneider Electric.Complete set SPS, XB4, Ø22mm metal version, programmable receiver, 24-240V change/equal voltage - XB4RFA02 from Schneider Electric
Control and signalling devices made of metal, diameter 22mm. The control circuit devices designed for industrial applications combine simple installation with great flexibility and robust design. The robust 3-point mounting with only one screw offers enormous safety and saves installation time.The technical features of XB4RFA02 from Schneider Electric at a glance
- Number of command points: 2
- Number of NO contacts: 0
- Number of CO contacts: 0
- Number of NC contacts: 0
- Design of the electrical connection: other
- Design of the lens: round
- Design of the button: flat
- Illuminated: Yes
- Width of the opening: 0 mm
- Colour of the button: green
- Colour of front ring: other
- Height of the opening: 0 mm
- Hole diameter: 22 mm
- With front ring: No
- Latching switching function: No
- Protection class (IP): other
- Groping: No
- Supply voltage of the lamp: 24 V
- Material of the front ring: other
Technical specifications
| Version | pushbutton with transmitter and receiver | |
| Collar shape of the front frame | round | |
| Installation diameter | 22 mm | |
| Front ring colour | silver | |
| Contact function | groping | |
| Protection class | IP65 |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85269200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| Sustainable | Yes |
