XB4BW34B5 | Schneider Electric

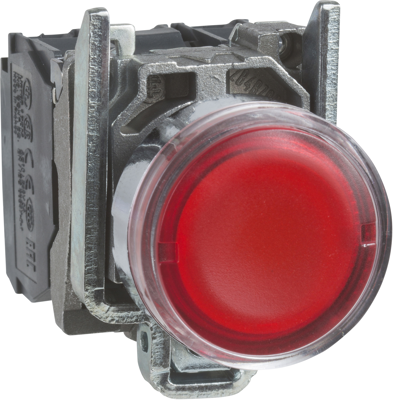

Pushbutton, illuminable, groping, 1 Form A (N/O) + 1 Form B (N/C), waistband round, red, front ring silver, mounting Ø 22 mm, XB4BW34B5
Unit Price (€ / pc.)
29.7738 € *
Available: 20 pcs.
Leadtime: 1 Week **
Total Price:
29.77 € *
Price list
Quantity
Price per unit*
1 pcs.
29.7738 €
5 pcs.
28.9765 €
*incl. VAT plus shipping costs
**Subject to prior sale
XB4BW34B5 from Schneider Electric at Bürklin Elektronik
On our site you will find detailed information about the product XB4BW34B5 from Schneider Electric.Illuminated pushbutton, red, flat, 1S+1Ö, momentary, +LED 24V AC/DC - XB4BW34B5 from Schneider Electric
Metal control circuit devices, diameter 22mm. The control and signalling devices designed for industrial applications combine simple installation with great flexibility and robust design. The robust 3-point mounting with only one screw offers enormous safety and saves installation time.The technical features of XB4BW34B5 from Schneider Electric at a glance
- Number of command points: 1
- Number of NO contacts: 1
- Number of CO contacts: 0
- Number of NC contacts: 1
- Design of the electrical connection: Screw connection
- Design of the lens: round
- Design of the button: flat
- Illuminated: Yes
- Width of the opening: 0 mm
- Colour of the button: red
- Colour of front ring: Chrom
- Height of the opening: 0 mm
- Hole diameter: 22 mm
- With front ring: Yes
- Latching switching function: No
- Protection class (IP): IP66
- Groping: Yes
- Supply voltage of the lamp: 24 V
- Material of the front ring: Metal
Technical specifications
| Connection | screw connection | |
| Version | pushbutton | |
| can be illuminated | Yes | |
| Collar shape of the front frame | round | |
| Installation diameter | 22 mm | |
| Actuator colour | red | |
| Front ring colour | silver | |
| Contact function | groping | |
| Contact material | silver | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Protection class | IP66 |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| Sustainable | Yes |
