XB4BK125B5 | Schneider Electric

Toggle switch, illuminable, latching, 1 Form A (N/O) + 1 Form B (N/C), waistband round, orange, front ring silver, 2 x 90°, mounting Ø 22 mm, XB4BK125B5

Order No.: 05P3107
EAN: 4099889225440
MPN:
XB4BK125B5
Series: Harmony XB4
XB4BK125B5 Schneider Electric Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
44.1847 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
44.18 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
44.1847 €

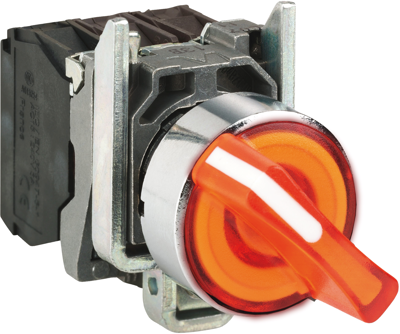

Illuminated selector switch, XB4BK125B5, Schneider Electric

This Harmony XB4 illuminated modular orange selector switch has 2 positions, operates with a stay-put mechanism, a 24V AC integral LED. It has a metal bezel. This illuminated selector switch provides a versatile and highly visible interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Technical specifications
Contact function latching
Installation diameter 22 mm
Front ring colour silver
Actuator colour orange
Product type toggle switch
Connection screw connection
Protection class IP66
Latching switching function 1 Form A (N/O) + 1 Form B (N/C)
Rotation angle 2 x 90°
Collar shape of the front frame round
can be illuminated Yes
Logistics
Country of origin FR
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
Sustainable Yes
