XB4BK124B5 | Schneider Electric
Selector switch, latching, 1 Form A (N/O) + 1 Form B (N/C), waistband round, red, front ring silver, 2 x 90°, mounting Ø 22 mm, XB4BK124B5
Unit Price (€ / pc.)
45.0058 € *
Available: 0 pcs.
Leadtime: On Request **

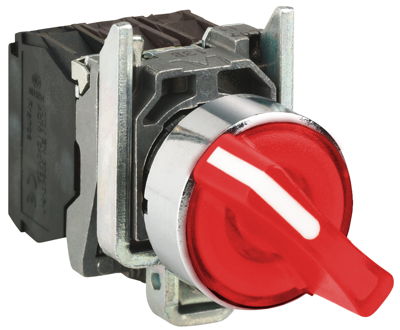

Illuminated selector switch, XB4BK124B5, Schneider Electric
This Harmony XB4 illuminated modular red selector switch has 2 positions, operates with a stay-put mechanism, a 24V AC integral LED. It has a metal bezel. This illuminated selector switch provides a versatile and highly visible interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Technical specifications
| Connection | screw connection | |
| Version | selector switch | |
| Collar shape of the front frame | round | |
| Rotation angle | 2 x 90° | |
| Installation diameter | 22 mm | |
| Actuator colour | red | |
| Front ring colour | silver | |
| Contact function | latching | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Protection class | IP66 |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| Sustainable | Yes |
