XB4BD33EX | Schneider Electric
Toggle switch, unlit, latching, 2 Form A (N/O), waistband round, black, front ring silver, 3 x 45°, mounting Ø 22 mm, XB4BD33EX

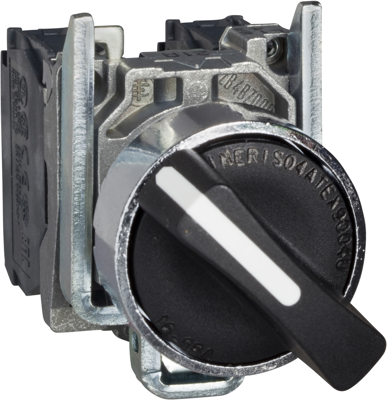

Selector switch, XB4BD33EX, Schneider Electric
This XB4 modular black selector switch is part of the range of control and signaling units metal for explosive atmosphere, ATEX dust offer, Harmony XB4. It has a chromium-plated metal bezel and is supplied with a black standard handle. It has 3 positions and operates with a stay-put mechanism. It features 2 NO slow break contacts and screw-clamp terminals connection type. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It weighs 102g. Thanks to its simplicity of installation, flexibility, and robustness, it meets the requirements of the majority of industrial applications. It complies with European Directive 2014/34/EU , Zone 21/22. The Harmony XB4 Explosive atmosphere range of control and signaling units is designed for industries where explosive atmospheres can be present.
| Contact function | latching | |
| Installation diameter | 22 mm | |
| Front ring colour | silver | |
| Actuator colour | black | |
| Product type | toggle switch | |
| Connection | screw connection | |
| Protection class | IP65 | |
| Latching switching function | 2 Form A (N/O) | |
| Rotation angle | 3 x 45° | |
| Collar shape of the front frame | round | |
| can be illuminated | No |
| Country of origin | FR |
| Customs tariff number | 85365080 |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
| Sustainable | Yes |
