9001KS46FB | Schneider Electric
Toggle switch, unlit, latching, waistband round, black, front ring silver, 3 x 45°, mounting Ø 30 mm, 9001KS46FB
Unit Price (€ / pc.)
66.8423 € *
Standard delivery time from the manufacturer is: 2 Weeks

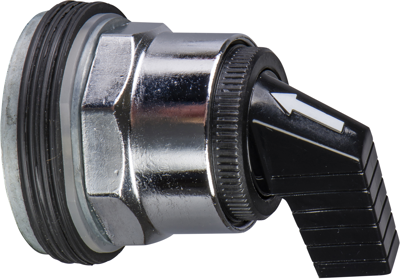

Selector switch, 9001KS46FB, Schneider Electric
This selector switch with long handle provides a versatile interface for controlling your machines. It is easily installed into a standard 30 mm diameter panel cut-outs and is easily connected to control circuits. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact function | latching | |
| Connection | screw connection | |
| Actuator colour | black | |
| Product type | toggle switch | |
| can be illuminated | No | |
| Collar shape of the front frame | round | |
| Rotation angle | 3 x 45° | |
| Installation diameter | 30 mm | |
| Protection class | IP66 | |
| Front ring colour | silver |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Sustainable | Yes |
| Substance description | Lead |
