9001KR9RH8 | Schneider Electric
Mushroom pushbutton, unlit, groping, 2 Form B (N/C), waistband round, red, front ring silver, mounting Ø 30 mm, 9001KR9RH8
Unit Price (€ / pc.)
259.3486 € *
Standard delivery time from the manufacturer is: 2 Weeks

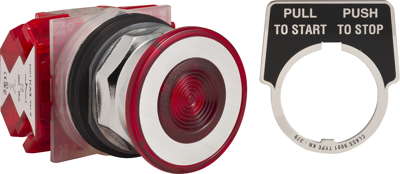

Mushroom pushbutton, 9001KR9RH8, Schneider Electric
This mushroom shaped push-button is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It is clearly distinguishable visually at a distance thanks to its prominent mushroom shape It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30 mm diameter panel cut-outs and connected with simple screw-clamp connections High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 6, 12 and 13).
Technical specifications
| Contact function | groping | |
| Installation diameter | 30 mm | |
| Front ring colour | silver | |
| Actuator colour | red | |
| Product type | mushroom pushbutton | |
| Connection | screw connection | |
| Latching switching function | 2 Form B (N/C) | |
| Collar shape of the front frame | round | |
| can be illuminated | No |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85381000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Sustainable | Yes |
