NSYPAP75G | Schneider Electric
7035 Internal door For Plm 75
Unit Price (€ / pc.)
69.615 € *
Available: 0 pcs.
Leadtime: 1 Week **

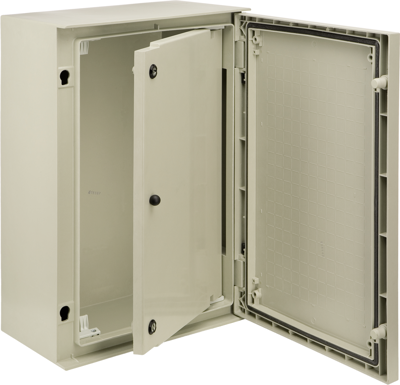

Reversible internal door, NSYPAP75G, Schneider Electric
Internal plain door for Thalassa PLM The product is to be mounted on front side of the enclosure. The grid pattern width is 405 mm, the grid pattern height is 615 mm, the available depth between enclosure door depth is 32 mm and available depth between rear depth is 244 mm.
The door is made of polyester charged with fibreglass (RAL 7035) and has a degree of IP protection IP20 Hinges left or right (110 ° opening angle) the door has 2 locks with 5 mm double bar. This product is qualified as a green premium, with minimal use of hazardous substances.
Technical specifications
| Version | interior door | |
| Width | 405 mm | |
| Colour | gray | |
| Height | 615 mm | |
| Material | polyester |
Download
Logistics
| Country of origin | ES |
| Customs tariff number | 85381000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
