NSYCCOFSEM8U1 | Schneider Electric
Thermal hub, 30 VDC, (L x W x H) 49.75 x 80 x 80 mm, NSYCCOFSEM8U1
Unit Price (€ / pc.)
289.5627 € *
Available: 0 pcs.
Leadtime: 7 Weeks **

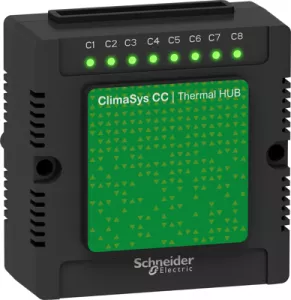

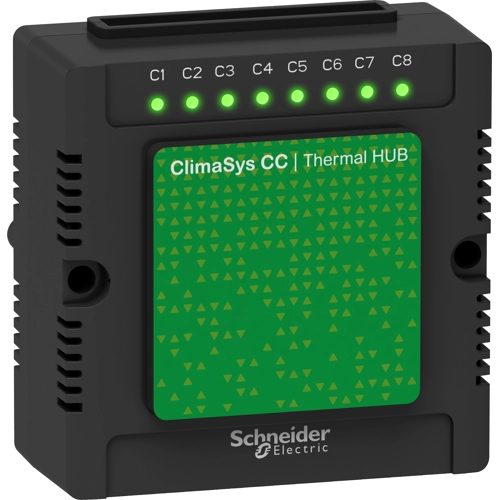

Thermal hub controller, NSYCCOFSEM8U1, Schneider Electric
CSVS Thermal Hub/Temperature Node (19-30V, DC). Module to extend the CSVS network with up to 32 sensors. Up to 8 thermal hubs (256 sensors) can be integrated in a network with a FilterStat controller. The controller recognizes automatically which type of sensor is connected. Size 80 x 80x 41 mm. Operating temperature -40 - +70 °C. For mounting on top hat rail (7.5 mm). For mounting in sheet metal (cut-out in doors, side or rear walls) an additional mounting frame (IP55) must be ordered.
Technical specifications
| Version | thermal hub | |
| Width | 80 mm | |
| Height | 80 mm | |
| Length | 49.75 mm |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85381000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
