IL13-C14-SVT-3100-183 | Schaffner
Device connection line, International, C14-plug, straight on C13 jack, straight, SVT 3 x AWG 18, black, 1.8 m
Unit Price (€ / pc.)
9.1868 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

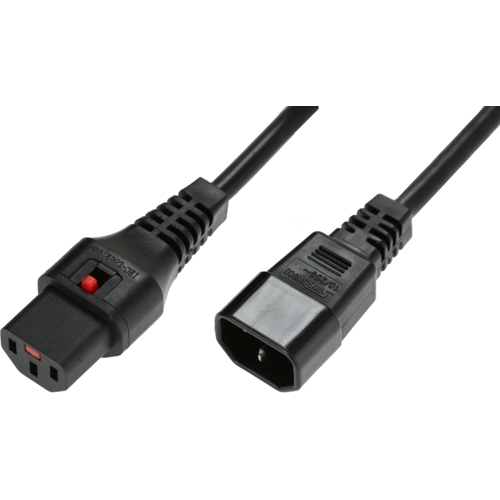

Power cord, IL13-C14-SVT-3100-183, SCHAFFNER
IEC cable assembly with locking system for IEC C14 inlet. The locking system has a tensile force of typical 200N. Schaffner power cord with IEC lock guard against accidental disconnection of all electrical appliances with an IEC inlet.
Features
- Power cord with locking system
- Protection class I
- Fits the complete Schaffner IEC inlet filter
- Max. pin temperature 70°C
Applications
- Data centers
- Industrial equipment
- Medical devices
- Broadcasting stations
- Mobile applications
Technical specifications
| Connection (1) | C14-plug, straight | |
| Connection (2) | C13 jack, straight | |
| Version | power cord | |
| AWG cross-section | AWG 18 | |
| Colour | black | |
| Cable type | SVT 3 x AWG 18 | |
| Cable length | 1.8 m | |
| Country code | International | |
| Cable cross-section | 1.0 mm² | |
| Rated current | 10 A | |
| Standard connection 1 | IEC 320-C14 | |
| Standard connection 2 | IEC 320-C13 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
