FN9260B-6-06 | Schaffner

IEC inlet filter C14, 50 to 400 Hz, 6 A, 250 VAC, 300 µH, faston plug 6.3 mm, FN9260B-6-06

Order No.: 71D1619
EAN: 7612774454335
MPN:
FN9260B-6-06
800507
Series: FN9260
Schaffner

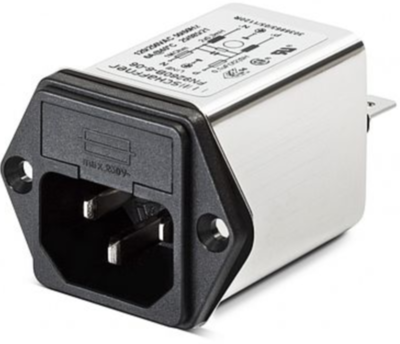

FN9260B-6-06 Schaffner Interference suppression filter
Image may differ
Unit Price (€ / pc.)
12.3522 € *
Available: 0 pcs.
Available in 5 Days: 918 pcs.
Leadtime: 1 Week **
Total Price:
12.35 € *
*incl. VAT plus shipping costs
**Subject to prior sale
60 pcs.
12.3522 €

IEC inlet filter, FN9260B-6-06, SCHAFFNER

The FN9260B-6-06 is a power entry module that combines an IEC inlet, with excellent filter attenuation and fuses in a small form factor. This product includes a wide selection on amperage ratings, output connections, mounting possibilities and filters for medical applications are designed to offer you the desired solution.

Features

  • Integrated single/dual fuse holder
  • Good attenuation performance
  • Wire leads option
  • Optional reduced leakage current version
  • Custom-specific version

Applications

  • Portable electrical and electronic equipment
  • Small to medium-sized machines and household equipment
  • Single-phase power supplies, switch-mode power supplies
  • Test and measurement equipment
  • Medical equipment
Technical specifications
ohmic resistance 1 MΩ
Connection faston plug 6.3 mm
Number of phases 1
Version IEC inlet filter C14
Rated Voltage 250 VAC
Inductance per line 300 µH
integrated switch No
Capacity X|Y X2 100 nF
max. frequency 400 Hz
max. operating temperature 85 °C
min. frequency 50 Hz
min. operating temperature -25 °C
With fuse Yes
Rated current 6 A
Logistics
Country of origin TH
Customs tariff number 85363010
Original Packaging Carton with 60 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
