FN9222-3-06 | Schaffner

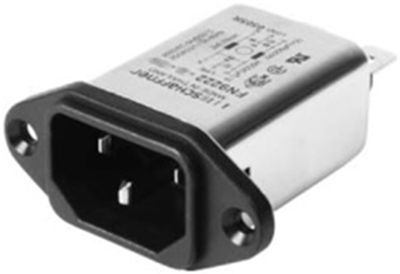

IEC inlet filter C14, 50 to 400 Hz, 3 A, 250 VAC, 2.5 mH, faston plug 6.3 mm, FN9222-3-06

default S
front S
default L
front L
Total price
(4.84 € * / pcs.)
4.84 €
Available: 38 pcs.
Quantity
Price per unit*
1 pcs.
4.84 €
5 pcs.
4.45 €
25 pcs.
4.25 €
75 pcs.
4.06 €
150 pcs.
3.94 €
*incl. VAT plus shipping costs
Show 12 variants
Description

Product by Schaffner at Bürklin Elektronik

IEC inlet filter, type Schaffner FN 9222.

High attenuation values with compact housing dimensions, for horizontal screw mounting; Capacitance: Cx 100 nF/Cy 2.2 nF. Leakage current: 373 µA. Operating voltage: 250 VAC, 50/60 Hz. Operating frequency: DC to 400 Hz. Test voltage: 2000 VAC. Connection: 6.3 x 0.8 mm solder/tab terminal combination. Test logo: UL, CSA, ENEC 14, CQC.

Technical attributes (type, rated current at+40 °C/+25 °C, rated inductance): FN 9222-3-06, 3.0/3.5 A, 2.5 mH

Technical specifications
Connection faston plug 6.3 mm
Number of phases 1
Version IEC inlet filter C14
Rated Voltage 250 VAC
Inductance per line 2.5 mH
integrated switch No
Capacity X|Y X2 100 nF, Y2 2.2 nF
max. frequency 0.0004 MHz
max. operating temperature 85 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse No
Rated current 3 A
Show similar products (0)
Logistics
Country of origin TH
Customs tariff number 85363010
Original Packaging Carton with 120 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/17/22
SVHC free Yes
Variations
1 item with 12 variations
Item description
Price list
Total
Version
Rated Voltage
Capacity X|Y
max. frequency
Number of phases
Connection
min. operating temperature
max. operating temperature
Rated current
min. frequency
IEC inlet filter C14, 50 to 400 Hz, 3 A, 250 VAC, 2.5 mH, faston plug 6.3 mm, FN9222-3-06
Order No.:
 71D142
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9222-3-06
1 pcs.
4.84 €
5 pcs.
4.45 €
25 pcs.
4.25 €
75 pcs.
4.06 €
150 pcs.
3.94 €
4.84 € *
Available: 38 pcs.
IEC inlet filter C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
3 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 1 A, 250 VAC, 12 mH, faston plug 6.3 mm, FN9222-1-06
Order No.:
 71D140
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9222-1-06
1 pcs.
4.76 €
5 pcs.
4.38 €
25 pcs.
4.18 €
75 pcs.
3.99 €
150 pcs.
3.88 €
4.76 € *
Available: 103 pcs.
IEC inlet filter C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
1 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 10 A, 250 VAC, 225 µH, faston plug 6.3 mm, FN9222-10-06
Order No.:
 71D146
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9222-10-06
1 pcs.
4.99 €
5 pcs.
4.58 €
25 pcs.
4.38 €
75 pcs.
4.18 €
150 pcs.
4.06 €
4.99 € *
Available: 26 pcs.
IEC inlet filter C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
10 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 6 A, 250 VAC, 780 µH, faston plug 6.3 mm, FN9222-6-06
Order No.:
 71D144
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9222-6-06
1 pcs.
4.89 €
5 pcs.
4.49 €
25 pcs.
4.28 €
75 pcs.
4.09 €
150 pcs.
3.97 €
4.89 € *
Available: 174 pcs.
IEC inlet filter C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
6 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 10 A, 250 VAC, 225 µH, Wire, FN9222-10-07
Order No.:
 71D1035
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9222-10-07
120 pcs.
6.81 €
0.00 € *
Currently not in stock, we will order for you
IEC inlet filter C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
Wire
-25 °C
85 °C
10 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 1 A, 250 VAC, 12 mH, Wire, FN9222-1-07
Order No.:
 71D1031
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9222-1-07
120 pcs.
6.50 €
0.00 € *
Currently not in stock, we will order for you
IEC inlet filter C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
Wire
-25 °C
85 °C
1 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 15 A, 250 VAC, 75 µH, faston plug 6.3 mm, FN9222-15-06
Order No.:
 71D1039
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9222-15-06
120 pcs.
4.80 €
0.00 € *
Currently not in stock, we will order for you
IEC inlet filter C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
15 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 8 A, 250 VAC, 500 µH, faston plug 6.3 mm, FN9222-8-06
Order No.:
 71D1034
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9222-8-06
120 pcs.
4.66 €
0.00 € *
Currently not in stock, we will order for you
IEC inlet filter C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
8 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 3 A, 250 VAC, 2.5 mH, Wire, FN9222-3-07
Order No.:
 71D1032
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9222-3-07
120 pcs.
6.62 €
0.00 € *
Currently not in stock, we will order for you
IEC inlet filter C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
Wire
-25 °C
85 °C
3 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 6 A, 250 VAC, 780 µH, Wire, FN9222-6-07
Order No.:
 71D1033
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9222-6-07
120 pcs.
6.71 €
0.00 € *
Currently not in stock, we will order for you
IEC inlet filter C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
Wire
-25 °C
85 °C
6 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 12 A, 250 VAC, 110 µH, faston plug 6.3 mm, FN9222-12-06
Order No.:
 71D1036
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9222-12-06
120 pcs.
4.74 €
0.00 € *
Currently not in stock, we will order for you
IEC inlet filter C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
12 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 15 A, 250 VAC, 75 µH, Wire, FN9222-15-07
Order No.:
 71D1041
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9222-15-07
120 pcs.
6.95 €
0.00 € *
Currently not in stock, we will order for you
IEC inlet filter C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
Wire
-25 °C
85 °C
15 A
0.00005 MHz
