FN9222-1-06 | Schaffner

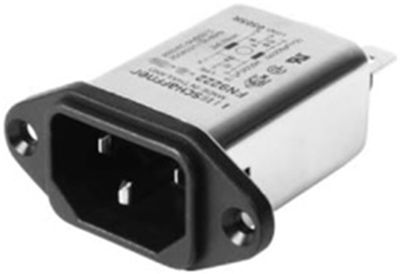

IEC inlet filter C14, 50 to 400 Hz, 1 A, 250 VAC, 12 mH, faston plug 6.3 mm, FN9222-1-06
Unit Price (€ / pc.)
8.6037 € *
Available: 1,360 pcs.
Total Price:
8.60 € *
Price list
Quantity
Price per unit*
1 pcs.
8.6037 €
10 pcs.
7.5803 €
120 pcs.
6.6521 €
240 pcs.
6.3903 €
960 pcs.
5.9857 €
*incl. VAT plus shipping costs
Subject to prior sale
IEC inlet filter, type Schaffner FN 9222.
High attenuation values with compact housing dimensions, for horizontal screw mounting; Capacitance: Cx 100 nF/Cy 2.2 nF. Leakage current: 373 µA. Operating voltage: 250 VAC, 50/60 Hz. Operating frequency: DC to 400 Hz. Test voltage: 2000 VAC. Connection: 6.3 x 0.8 mm solder/tab terminal combination. Test logo: UL, CSA, ENEC 14, CQC.
Technical attributes (type, rated current at+40 °C/+25 °C, rated inductance): FN 9222-1-06, 1.0/1.2 A, 12 mH
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of phases | 1 | |
| Rated Voltage | 250 VAC | |
| min. frequency | 50 Hz | |
| min. operating temperature | -25 °C | |
| Capacity X|Y | X2 100 nF, Y2 2.2 nF | |
| Rated current | 1 A | |
| max. operating temperature | 85 °C | |
| Version | IEC inlet filter C14 | |
| Connection | faston plug 6.3 mm | |
| max. frequency | 400 Hz | |
| Inductance per line | 12 mH | |
| With fuse | No | |
| integrated switch | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Country of origin | TH |
| Original Packaging | Carton with 120 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
