FN355-20-03 | Schaffner

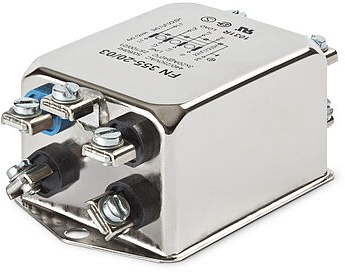

3 phase/neutral filter, 400 Hz, 20 A, 250/440 VAC, 3.6 W, 120 µH, terminal strip, FN355-20-03

default S
front S
default L
front L
Total price
(59.06 € * / pcs.)
0.00 €
Next delivery: 19 pcs. on 2023-01-27
Quantity
Price per unit*
1 pcs.
59.06 €
3 pcs.
56.63 €
5 pcs.
54.39 €
10 pcs.
53.00 €
*incl. VAT plus shipping costs
Description

Product by Schaffner at Bürklin Elektronik

EMC filter, three-phase, type Schaffner FN 355.

Universal four-wire filter with single-stage four-wire LC circuit with saturation-free ring-shaped inductors; Features: ow leakage current, terminals for three phases, neutral and ground. Compact dimensions. Operating voltage: max. 3 x 440/250 VAC. Operating frequency: up to 60 Hz. Test voltage: 2000 VAC. Connection: 6.3 x 0.8 mm tab terminals, version with 20 A screw terminals. Test logos: UL, CSA, IEC/EN 60939.

Technical attributes (type, rated current at +40 °C, leakage current (400 VAC/50 Hz) mA, power losses W): FN 355-20-03, 20 A, 0.29 mA, 3.4 W

Technical specifications
Connection terminal strip
Number of phases 3
Version 3 phase/neutral filter
Rated Voltage 250/440 VAC
Inductance per line 0.12 mH
integrated switch No
Capacity X|Y X2 100 nF, Y2 22 nF
Power 3.6 W
max. frequency 0.0004 MHz
max. operating temperature 100 °C
min. operating temperature -25 °C
With fuse No
Rated current 20 A
Show similar products (0)
Logistics
Country of origin TH
Customs tariff number 85363010
Original Packaging Carton with 20 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/17/22
SVHC free Yes
Variations
1 item with 3 variations
Item description
Price list
Total
Version
Rated Voltage
max. frequency
Capacity X|Y
Number of phases
Connection
min. operating temperature
max. operating temperature
Rated current
Power
3 phase/neutral filter, 400 Hz, 20 A, 250/440 VAC, 3.6 W, 120 µH, terminal strip, FN355-20-03
Order No.:
 71D856
Manufacturer:
 Schaffner
Manufacturer SKU
 FN355-20-03
1 pcs.
59.06 €
3 pcs.
56.63 €
5 pcs.
54.39 €
10 pcs.
53.00 €
0.00 € *
Next delivery: 19 pcs. on 2023-01-27
3 phase/neutral filter
250/440 VAC
0.0004 MHz
X2 100 nF, Y2 22 nF
3
terminal strip
-25 °C
100 °C
20 A
3.6 W
3 phase/neutral filter, 400 Hz, 10 A, 250/440 VAC, 1.8 W, faston plug 6.3 mm, FN355-10-05
Order No.:
 71D854
Manufacturer:
 Schaffner
Manufacturer SKU
 FN355-10-05
20 pcs.
48.50 €
0.00 € *
Currently not in stock, we will order for you
3 phase/neutral filter
250/440 VAC
0.0004 MHz
3
faston plug 6.3 mm
-25 °C
100 °C
10 A
1.8 W
3 phase/neutral filter, 400 Hz, 3 A, 250/440 VAC, 1.5 W, 1 mH, faston plug 6.3 mm, FN355-3-05
Order No.:
 71D850
Manufacturer:
 Schaffner
Manufacturer SKU
 FN355-3-05
20 pcs.
45.41 €
0.00 € *
Currently not in stock, we will order for you
3 phase/neutral filter
250/440 VAC
0.0004 MHz
X2 100 nF, Y2 4.7 nF
3
faston plug 6.3 mm
-25 °C
100 °C
3 A
1.5 W
