FN286-4-06 | Schaffner
IEC inlet filter C14, 50 to 400 Hz, 4 A, 250 VAC, 1 mH, faston plug 6.3 mm, FN286-4-06
Unit Price (€ / pc.)
36.9019 € *
Available: 42 pcs.
Total Price:
36.90 € *
Price list
Quantity
Price per unit*
1 pcs.
36.9019 €
5 pcs.
34.6885 €
40 pcs.
31.1423 €
80 pcs.
30.2498 €
160 pcs.
29.3692 €
*incl. VAT plus shipping costs
Subject to prior sale
IEC inlet filter with toggle switch and fuse holder, type Schaffner FN 280.
For vertical (top and bottom mounting holes), horizontal (left and right mounting holes), or snap-in mounting, double-pole toggle switch and fuse holder with comfortable access for installation of one or two 5 x 20 mm fuses; Capacitance: Cx 220 nF/Cy 2.2 nF. Leakage current: 373 µA. Operating voltage: 250 VAC, 50/60 Hz. Operating frequency: DC to 400 Hz. Test voltage: 2000 VAC. Connection: 6.3 x 0.8 mm solder/tab terminal combination. Test logo: UL, CSA, ENEC 14.

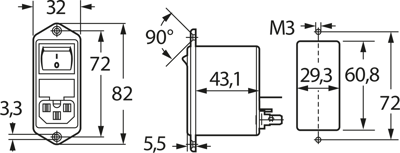

For snap-in mounting, type FN 286.
With 2 fuses.
Technical attributes (type, rated current at +40 °C/+25 °C, rated inductance): FN 286-4-06, 4.0/4.8 A, 1.0 mH
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. frequency | 50 Hz | |
| Rated Voltage | 250 VAC | |
| ohmic resistance | 1 MΩ | |
| integrated switch | Yes | |
| Inductance per line | 1 mH | |
| Capacity X|Y | X2 220 nF, Y2 2.2 nF | |
| Rated current | 4 A | |
| min. operating temperature | -25 °C | |
| Connection | faston plug 6.3 mm | |
| Version | IEC inlet filter C14 | |
| Number of phases | 1 | |
| max. operating temperature | 85 °C | |
| With fuse | Yes | |
| max. frequency | 400 Hz |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85363010 |
| Original Packaging | Carton with 40 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
