FN282-1-06 | Schaffner
IEC inlet filter C14, 50 to 400 Hz, 1 A, 250 VAC, 7.5 mH, faston plug 6.3 mm, FN282-1-06
Unit Price (€ / pc.)
36.0451 € *
Next delivery: 30 pcs. on 2025-09-08
Total Price:
36.05 € *
Price list
Quantity
Price per unit*
1 pcs.
36.0451 €
5 pcs.
33.8793 €
40 pcs.
30.4164 €
80 pcs.
29.5596 €
160 pcs.
28.7028 €
*incl. VAT plus shipping costs
Subject to prior sale
IEC inlet filter with toggle switch and fuse holder, type Schaffner FN 280.
For vertical (top and bottom mounting holes), horizontal (left and right mounting holes), or snap-in mounting, double-pole toggle switch and fuse holder with comfortable access for installation of one or two 5 x 20 mm fuses; Capacitance: Cx 220 nF/Cy 2.2 nF. Leakage current: 373 µA. Operating voltage: 250 VAC, 50/60 Hz. Operating frequency: DC to 400 Hz. Test voltage: 2000 VAC. Connection: 6.3 x 0.8 mm solder/tab terminal combination. Test logo: UL, CSA, ENEC 14.

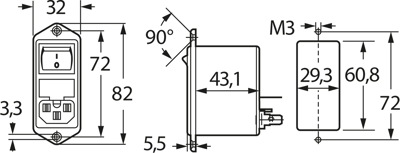

For vertical screw mounting, type FN 281/FN 282.
FN 281: 1 fuse. FN 282: 2 fuses.
Technical attributes (type, rated current at +40 °C/+25 °C, rated inductance): FN 282-1-06, 1.0/1.2 A, 7.5 mH
Technical specifications
| Inductance per line | 7.5 mH | |
| max. frequency | 400 Hz | |
| Number of phases | 1 | |
| With fuse | Yes | |
| Rated current | 1 A | |
| Connection | faston plug 6.3 mm | |
| max. operating temperature | 85 °C | |
| Capacity X|Y | X2 220 nF, Y2 2.2 nF | |
| integrated switch | Yes | |
| ohmic resistance | 1 MΩ | |
| Rated Voltage | 250 VAC | |
| min. operating temperature | -25 °C | |
| Version | IEC inlet filter C14 | |
| min. frequency | 50 Hz |
Download
Logistics
| Customs tariff number | 85363010 |
| Original Packaging | Carton with 40 pieces |
| Country of origin | TH |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
