Schaffner

FN2070A-6-06 | Schaffner

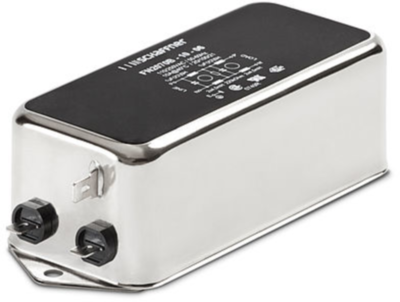

2-stage filter, 50 to 400 Hz, 6 A, 250 V (DC), 250 VAC, 7.8 mH, faston plug 6.3 mm, FN2070A-6-06

default S
default L
Total price
(32.18 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
20 pcs.
32.18 €
*incl. VAT plus shipping costs
Description

Product by Schaffner at Bürklin Elektronik

Two-stage filter, FN2070A-6-06, SCHAFFNER

Multi-stage performance AC/DC EMI filter

Features

  • High differential and common-mode attenuation
  • High frequency attenuation
  • Rated currents from 1 to 36 A
  • Optional safety version
  • Various terminal options allow you to select the desired connection style

Applications

  • Electrical and electronic equipment
  • Household equipment
  • Building automation
  • Industrial application
  • Machinery
  • Medical equipment
  • Electronic data processing equipment
  • Office automation and datacom equipment
  • Single Phase Motor Drive
Technical specifications
ohmic resistance 220000 Ω
Connection faston plug 6.3 mm
Number of phases 1
Version 2-stage filter
Rated Voltage 250 VAC
Inductance per line 7.8 mH
integrated switch No
Capacity X|Y X2 1 µF, Y2 470 pF
max. frequency 0.0004 MHz
max. operating temperature 100 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse No
Rated voltage (DC) 250 V
Rated current 6 A
Show similar products (0)
Logistics
Country of origin CN
Customs tariff number 85363010
Original Packaging Carton with 20 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/17/22
SVHC free Yes
Variations
1 item with 5 variations
Item description
Price list
Total
ohmic resistance
Version
Capacity X|Y
min. operating temperature
Rated Voltage
max. frequency
Number of phases
Connection
Rated voltage (DC)
max. operating temperature
Rated current
min. frequency
2-stage filter, 50 to 400 Hz, 16 A, 250 V (DC), 250 VAC, 2.8 mH, faston plug 6.3 mm, FN2070A-16-06
Order No.:
 71D0159
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2070A-16-06
10 pcs.
68.32 €
0.00 € *
Currently not in stock, we will order for you
220000 Ω
2-stage filter
X2 1 µF, Y2 470 pF
-25 °C
250 VAC
0.0004 MHz
1
faston plug 6.3 mm
250 V
100 °C
16 A
0.00005 MHz
2-stage filter, 50 to 400 Hz, 6 A, 250 V (DC), 250 VAC, 7.8 mH, faston plug 6.3 mm, FN2070A-6-06
Order No.:
 71D0156
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2070A-6-06
20 pcs.
32.18 €
0.00 € *
Currently not in stock, we will order for you
220000 Ω
2-stage filter
X2 1 µF, Y2 470 pF
-25 °C
250 VAC
0.0004 MHz
1
faston plug 6.3 mm
250 V
100 °C
6 A
0.00005 MHz
2-stage filter, 50 to 400 Hz, 3 A, 250 V (DC), 250 VAC, 9.8 mH, faston plug 6.3 mm, FN2070A-3-06
Order No.:
 71D0155
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2070A-3-06
20 pcs.
26.57 €
0.00 € *
Currently not in stock, we will order for you
470000 Ω
2-stage filter
X2 470 nF, Y2 470 pF
-25 °C
250 VAC
0.0004 MHz
1
faston plug 6.3 mm
250 V
100 °C
3 A
0.00005 MHz
2-stage filter, 50 to 400 Hz, 6 A, 250 V (DC), 250 VAC, 7.8 mH, Wire, FN2070A-6-07
Order No.:
 71D0157
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2070A-6-07
20 pcs.
37.27 €
0.00 € *
Currently not in stock, we will order for you
220000 Ω
2-stage filter
X2 1 µF, Y2 470 pF
-25 °C
250 VAC
0.0004 MHz
1
Wire
250 V
100 °C
6 A
0.00005 MHz
2-stage filter, 50 to 400 Hz, 10 A, 250 V (DC), 250 VAC, 4.5 mH, faston plug 6.3 mm, FN2070A-10-06
Order No.:
 71D0158
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2070A-10-06
20 pcs.
45.66 €
0.00 € *
Currently not in stock, we will order for you
220000 Ω
2-stage filter
X2 1 µF, Y2 470 pF
-25 °C
250 VAC
0.0004 MHz
1
faston plug 6.3 mm
250 V
100 °C
10 A
0.00005 MHz
