FN2060-16-06 | Schaffner
2-stage filter, 50 to 400 Hz, 16 A, 250 V (DC), 250 VAC, 650 µH, faston plug 6.3 mm, FN2060-16-06
Unit Price (€ / pc.)
51.6579 € *
Available: 410 pcs.
Total Price:
51.66 € *
Price list
Quantity
Price per unit*
1 pcs.
51.6579 €
5 pcs.
48.5520 €
20 pcs.
46.0768 €
40 pcs.
44.8273 €
160 pcs.
42.3521 €
*incl. VAT plus shipping costs
Subject to prior sale

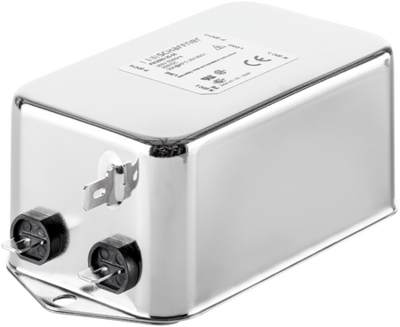

EMC filter, single-phase, type Schaffner FN 2060.
With additional inductive stage for high differential and common mode attenuation; Leakage current: 0.734 mA. Operating voltage 250 VAC/50 to 60 Hz. Operating frequency: to 400 Hz. Test voltage: 2000 VAC. Connection: solderable 6.3 x 0.8 tab terminals. Test logos: UL, CSA, ENEC 14.

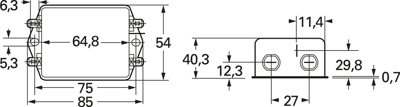

EMC filters, 85 mm length, 40.3 mm height, type FN 2060.
Technical attributes (type, rated current at+40 °C, inductance, capacitance Cx/Cy): FN 206-16-06, 16 A, 0.65 mH, 0.33 µF/4.7 nF
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -25 °C | |
| max. operating temperature | 100 °C | |
| Rated current | 16 A | |
| Version | 2-stage filter | |
| Number of phases | 1 | |
| integrated switch | No | |
| ohmic resistance | 1 MΩ | |
| Capacity X|Y | X2 330 nF, Y2 4.7 nF | |
| min. frequency | 50 Hz | |
| Rated voltage (DC) | 250 V | |
| Connection | faston plug 6.3 mm | |
| Inductance per line | 650 µH | |
| With fuse | No | |
| Rated Voltage | 250 VAC | |
| max. frequency | 400 Hz |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Carton with 20 pieces |
| Customs tariff number | 85363010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
