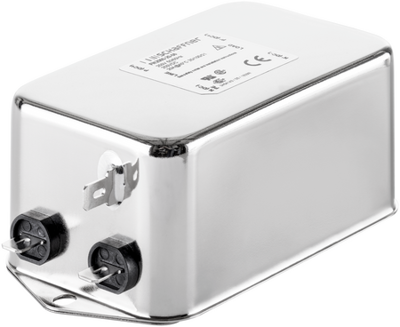

2-stage filter, 50 to 400 Hz, 1 A, 250 V (DC), 250 VAC, 12 mH, faston plug 6.3 mm, FN2060-1-06

Order No.:  71D700
MPN:
FN2060-1-06
800572
Series:  FN2060
EAN: 4099889076813
Schaffner
default L
default S
Images may differ
Unit Price (€ / pc.)
26.4894 € *
Available: 62 pcs.
Leadtime: 24 Weeks **
Total Price:
26.49 € *
Quantity
Price per unit*
1 pcs.
26.4894 €
5 pcs.
24.9067 €
15 pcs.
23.9428 €
50 pcs.
22.8837 €
200 pcs.
21.6104 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description

EMC filter, single-phase, type Schaffner FN 2060.

With additional inductive stage for high differential and common mode attenuation; Leakage current: 0.734 mA. Operating voltage 250 VAC/50 to 60 Hz. Operating frequency: to 400 Hz. Test voltage: 2000 VAC. Connection: solderable 6.3 x 0.8 tab terminals. Test logos: UL, CSA, ENEC 14.

Technical attributes (type, rated current at+40 °C, inductance, capacitance Cx/Cy): FN 2060-1-06, 1.0 A, 12 mH, 0.22 µF/4.7 nF

Technical specifications
ohmic resistance 1 MΩ
Connection faston plug 6.3 mm
Number of phases 1
Version 2-stage filter
Rated Voltage 250 VAC
Inductance per line 12 mH
integrated switch No
Capacity X|Y X2 220 nF, Y2 4.7 nF
max. frequency 400 Hz
max. operating temperature 100 °C
min. frequency 50 Hz
min. operating temperature -25 °C
With fuse No
Rated voltage (DC) 250 V
Rated current 1 A
Show similar products (0)
Logistics
Country of origin CN
Customs tariff number 85363010
Original Packaging Carton with 50 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Search results: 1 item in 6 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Availability
ohmic resistance
Capacity X|Y
Connection
Rated current
Version
Rated Voltage
max. frequency
Number of phases
min. operating temperature
Rated voltage (DC)
max. operating temperature
min. frequency
2-stage filter, 50 to 400 Hz, 6 A, 250 V (DC), 250 VAC, 970 µH, faston plug 6.3 mm, FN2060-6-06
Order No.:
 71D704
Manufacturer:
 Schaffner
Manufacturer SKU:
 FN2060-6-06
Total Price: 30.45 € *
1 pcs.
30.4521 €
5 pcs.
28.6314 €
15 pcs.
27.5366 €
50 pcs.
26.3109 €
200 pcs.
24.8472 €
Available: 48 pcs.
Leadtime: 24 Weeks **
1 MΩ
X2 220 nF, Y2 4.7 nF
faston plug 6.3 mm
6 A
2-stage filter
250 VAC
400 Hz
1
-25 °C
250 V
100 °C
50 Hz
2-stage filter, 50 to 400 Hz, 1 A, 250 V (DC), 250 VAC, 12 mH, faston plug 6.3 mm, FN2060-1-06
Order No.:
 71D700
Manufacturer:
 Schaffner
Manufacturer SKU:
 FN2060-1-06
Total Price: 26.49 € *
1 pcs.
26.4894 €
5 pcs.
24.9067 €
15 pcs.
23.9428 €
50 pcs.
22.8837 €
200 pcs.
21.6104 €
Available: 62 pcs.
Leadtime: 24 Weeks **
1 MΩ
X2 220 nF, Y2 4.7 nF
faston plug 6.3 mm
1 A
2-stage filter
250 VAC
400 Hz
1
-25 °C
250 V
100 °C
50 Hz
2-stage filter, 50 to 400 Hz, 16 A, 250 V (DC), 250 VAC, 650 µH, faston plug 6.3 mm, FN2060-16-06
Order No.:
 71D710
Manufacturer:
 Schaffner
Manufacturer SKU:
 FN2060-16-06
Total Price: 51.66 € *
1 pcs.
51.6579 €
5 pcs.
48.5520 €
20 pcs.
46.0768 €
40 pcs.
44.8273 €
160 pcs.
42.3521 €
Available: 7 pcs.
Next delivery: 20 pcs. on 2024-04-12
Leadtime: 7 Weeks **
1 MΩ
X2 330 nF, Y2 4.7 nF
faston plug 6.3 mm
16 A
2-stage filter
250 VAC
400 Hz
1
-25 °C
250 V
100 °C
50 Hz
2-stage filter, 50 to 400 Hz, 10 A, 250 V (DC), 250 VAC, 800 µH, faston plug 6.3 mm, FN2060-10-06
Order No.:
 71D0119
Manufacturer:
 Schaffner
Manufacturer SKU:
 FN2060-10-06
Total Price: 21.53 € *
50 pcs.
21.5271 €
Available: 0 pcs.
Leadtime: 24 Weeks **
470 kΩ
X2 470 nF, Y2 4.7 nF
faston plug 6.3 mm
10 A
2-stage filter
250 VAC
400 Hz
1
-25 °C
250 V
100 °C
50 Hz
2-stage filter, 50 to 400 Hz, 16 A, 250 V (DC), 250 VAC, 650 µH, threaded bolt M4, FN2060-16-08
Order No.:
 71D0124
Manufacturer:
 Schaffner
Manufacturer SKU:
 FN2060-16-08
Total Price: 40.35 € *
20 pcs.
40.3529 €
Available: 0 pcs.
Leadtime: 24 Weeks **
1 MΩ
X2 330 nF, Y2 4.7 nF
threaded bolt M4
16 A
2-stage filter
250 VAC
400 Hz
1
-25 °C
250 V
100 °C
50 Hz
2-stage filter, 50 to 400 Hz, 3 A, 250 V (DC), 250 VAC, 2.5 mH, faston plug 6.3 mm, FN2060-3-06
Order No.:
 71D702
Manufacturer:
 Schaffner
Manufacturer SKU:
 FN2060-3-06
Total Price: 17.36 € *
50 pcs.
17.3621 €
Available: 0 pcs.
Leadtime: 24 Weeks **
1 MΩ
X2 220 nF, Y2 4.7 nF
faston plug 6.3 mm
3 A
2-stage filter
250 VAC
400 Hz
1
-25 °C
250 V
100 °C
50 Hz
