FN2030A-20-08 | Schaffner

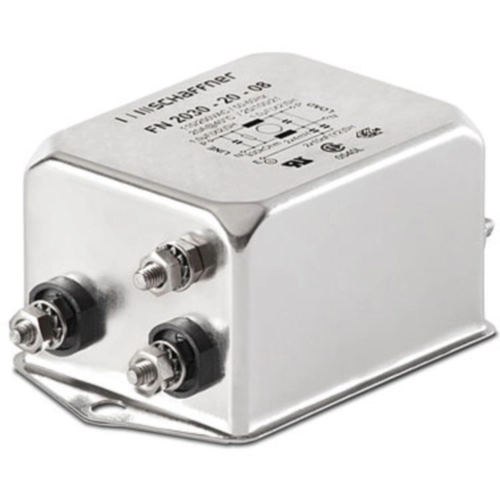

1-stage filter, 50 to 400 Hz, 20 A, 250 V (DC), 250 VAC, 4 mH, threaded bolt M4, FN2030A-20-08

default S
default L
Total price
(31.82 € * / pcs.)
31.82 €
Available: 19 pcs.
Quantity
Price per unit*
1 pcs.
31.82 €
3 pcs.
30.46 €
5 pcs.
29.20 €
10 pcs.
28.05 €
*incl. VAT plus shipping costs
Show 6 variants
Description

Product by Schaffner at Bürklin Elektronik

Single-stage filter, FN2030A-20-08, SCHAFFNER

General purpose AC/DC EMI filter with high attenuation performance.

Features

  • High performance filter attenuation
  • High differential-mode attenuation
  • Rated currents from 1 to 30 A
  • Optional safety version
  • Optional enhanced performance version

Applications

  • Electrical and electronic equipment
  • Household equipment
  • Medical equipment
  • Electronic data processing equipment
  • Office automation and datacom equipment
  • Various noisy applications requiring high filter performance
Technical specifications
ohmic resistance 330000 Ω
Connection threaded bolt M4
Number of phases 1
Version 1-stage filter
Rated Voltage 250 VAC
Inductance per line 4 mH
integrated switch No
Capacity X|Y X2 1 µF, Y2 470 pF
max. frequency 0.0004 MHz
max. operating temperature 100 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse No
Rated voltage (DC) 250 V
Rated current 20 A
Show similar products (0)
Logistics
Country of origin CN
Customs tariff number 85363010
Original Packaging Carton with 20 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/17/22
SVHC free Yes
Variations
1 item with 6 variations
Item description
Price list
Total
ohmic resistance
Version
Capacity X|Y
min. operating temperature
Rated Voltage
max. frequency
Number of phases
Connection
Rated voltage (DC)
max. operating temperature
Rated current
min. frequency
1-stage filter, 50 to 400 Hz, 3 A, 250 V (DC), 250 VAC, 14 mH, faston plug 6.3 mm, FN2030A-3-06
Order No.:
 71D0077
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2030A-3-06
50 pcs.
17.66 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
1-stage filter
X2 330 nF, Y2 470 pF
-25 °C
250 VAC
0.0004 MHz
1
faston plug 6.3 mm
250 V
100 °C
3 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 20 A, 250 V (DC), 250 VAC, 4 mH, threaded bolt M4, FN2030A-20-08
Order No.:
 71D0082
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2030A-20-08
1 pcs.
31.82 €
3 pcs.
30.46 €
5 pcs.
29.20 €
10 pcs.
28.05 €
31.82 € *
Available: 19 pcs.
330000 Ω
1-stage filter
X2 1 µF, Y2 470 pF
-25 °C
250 VAC
0.0004 MHz
1
threaded bolt M4
250 V
100 °C
20 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 30 A, 250 V (DC), 250 VAC, 2 mH, threaded bolt M4, FN2030A-30-08
Order No.:
 71D0083
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2030A-30-08
20 pcs.
47.68 €
0.00 € *
Currently not in stock, we will order for you
330000 Ω
1-stage filter
X2 1 µF, Y2 470 pF
-25 °C
250 VAC
0.0004 MHz
1
threaded bolt M4
250 V
100 °C
30 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 6 A, 250 V (DC), 250 VAC, 8 mH, faston plug 6.3 mm, FN2030A-6-06
Order No.:
 71D0078
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2030A-6-06
50 pcs.
17.61 €
0.00 € *
Currently not in stock, we will order for you
680000 Ω
1-stage filter
X2 470 nF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
faston plug 6.3 mm
250 V
100 °C
6 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 20 A, 250 V (DC), 250 VAC, 4 mH, faston plug 6.3 mm, FN2030A-20-06
Order No.:
 71D0081
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2030A-20-06
20 pcs.
28.86 €
0.00 € *
Currently not in stock, we will order for you
330000 Ω
1-stage filter
X2 1 µF, Y2 470 pF
-25 °C
250 VAC
0.0004 MHz
1
faston plug 6.3 mm
250 V
100 °C
20 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 10 A, 250 V (DC), 250 VAC, 8 mH, faston plug 6.3 mm, FN2030A-10-06
Order No.:
 71D0079
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2030A-10-06
50 pcs.
20.21 €
0.00 € *
Currently not in stock, we will order for you
680000 Ω
1-stage filter
X2 470 nF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
faston plug 6.3 mm
250 V
100 °C
10 A
0.00005 MHz
