FN2020-10-06 | Schaffner

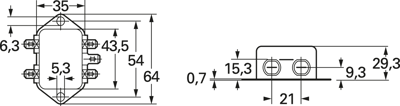

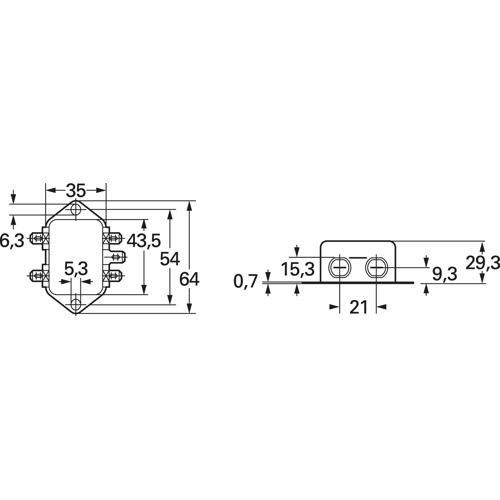

1-stage filter, 50 to 400 Hz, 10 A, 250 V (DC), 250 VAC, 800 µH, faston plug 6.3 mm, FN2020-10-06

default S
front S
default L
front L
Total price
(15.47 € * / pcs.)
15.47 €
Available: 48 pcs.
Quantity
Price per unit*
1 pcs.
15.47 €
5 pcs.
14.76 €
10 pcs.
14.10 €
25 pcs.
13.14 €
*incl. VAT plus shipping costs
Show 17 variants
Description

Product by Schaffner at Bürklin Elektronik

EMC filter, single-phase, type Schaffner FN 2020.

Enhanced symmetrical attenuation with additional capacitance in parallel to the phase and neutral; Capacitance: Cx 0.15 µF/Cy 4.7nF. Leakage current: 0.74 mA. Operating voltage: 250 VAC/50 to 60 Hz. Operating frequency: to 400 Hz. Test voltage: 2000 VAC. Connection: solderable 6.3 x 0.8 tab terminals. Test logo: UL, CSA, ENEC 14.

Technical attributes (type, rated current at +40 °C, inductance): FN 2020-10-06, 10 A, 0.8 mH

Technical specifications
ohmic resistance 1000000 Ω
Connection faston plug 6.3 mm
Number of phases 1
Version 1-stage filter
Rated Voltage 250 VAC
Inductance per line 0.8 mH
integrated switch No
Capacity X|Y X2 150 nF, Y2 4.7 nF
max. frequency 0.0004 MHz
max. operating temperature 100 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse No
Rated voltage (DC) 250 V
Rated current 10 A
Show similar products (0)
Logistics
Country of origin CN
Customs tariff number 85363010
Original Packaging Carton with 60 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/17/22
SVHC free Yes
Variations
1 item with 17 variations
Item description
Price list
Total
ohmic resistance
Version
Capacity X|Y
min. operating temperature
Rated Voltage
max. frequency
Number of phases
Connection
Rated voltage (DC)
max. operating temperature
Rated current
min. frequency
1-stage filter, 50 to 400 Hz, 16 A, 250 V (DC), 250 VAC, 650 µH, faston plug 6.3 mm, FN2020-16-06
Order No.:
 71D690
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2020-16-06
1 pcs.
19.23 €
4 pcs.
18.41 €
8 pcs.
17.66 €
20 pcs.
16.96 €
19.23 € *
Available: 25 pcs.
1000000 Ω
1-stage filter
X2 150 nF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
faston plug 6.3 mm
250 V
100 °C
16 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 20 A, 250 V (DC), 250 VAC, 600 µH, faston plug 6.3 mm, FN2020-20-06
Order No.:
 71D692
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2020-20-06
30 pcs.
25.13 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
1-stage filter
X2 150 nF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
faston plug 6.3 mm
250 V
100 °C
20 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 12 A, 250 V (DC), 250 VAC, 700 µH, faston plug 6.3 mm, FN2020-12-06
Order No.:
 71D688
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2020-12-06
60 pcs.
14.95 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
1-stage filter
X2 150 nF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
faston plug 6.3 mm
250 V
100 °C
12 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 10 A, 250 V (DC), 250 VAC, 800 µH, faston plug 6.3 mm, FN2020-10-06
Order No.:
 71D686
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2020-10-06
1 pcs.
15.47 €
5 pcs.
14.76 €
10 pcs.
14.10 €
25 pcs.
13.14 €
15.47 € *
Available: 48 pcs.
1000000 Ω
1-stage filter
X2 150 nF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
faston plug 6.3 mm
250 V
100 °C
10 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 3 A, 250 V (DC), 250 VAC, 2.5 mH, faston plug 6.3 mm, FN2020-3-06
Order No.:
 71D682
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2020-3-06
1 pcs.
14.91 €
5 pcs.
14.22 €
10 pcs.
13.60 €
25 pcs.
12.66 €
14.91 € *
Available: 55 pcs.
1000000 Ω
1-stage filter
X2 150 nF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
faston plug 6.3 mm
250 V
100 °C
3 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 16 A, 250 V (DC), 250 VAC, 650 µH, Wire, FN2020-16-07
Order No.:
 71D0039
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2020-16-07
60 pcs.
22.44 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
1-stage filter
X2 150 nF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
Wire
250 V
100 °C
16 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 3 A, 250 V (DC), 250 VAC, 2.5 mH, Wire, FN2020-3-07
Order No.:
 71D0034
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2020-3-07
60 pcs.
16.23 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
1-stage filter
X2 150 nF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
Wire
250 V
100 °C
3 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 60 A, 250 V (DC), 250 VAC, 1 mH, threaded bolt M6, FN2020-60-24
Order No.:
 71D0043
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2020-60-24
5 pcs.
133.28 €
0.00 € *
Currently not in stock, we will order for you
220000 Ω
1-stage filter
X2 150 nF, Y2 10 nF
-25 °C
250 VAC
0.0004 MHz
1
threaded bolt M6
250 V
100 °C
60 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 12 A, 250 V (DC), 250 VAC, 700 µH, Wire, FN2020-12-07
Order No.:
 71D0038
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2020-12-07
60 pcs.
17.18 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
1-stage filter
X2 150 nF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
Wire
250 V
100 °C
12 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 6 A, 250 V (DC), 250 VAC, 1 mH, faston plug 6.3 mm, FN2020-6-06
Order No.:
 71D0035
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2020-6-06
60 pcs.
14.40 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
1-stage filter
X2 150 nF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
faston plug 6.3 mm
250 V
100 °C
6 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 10 A, 250 V (DC), 250 VAC, 800 µH, Wire, FN2020-10-07
Order No.:
 71D0037
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2020-10-07
60 pcs.
16.87 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
1-stage filter
X2 150 nF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
Wire
250 V
100 °C
10 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 20 A, 250 V (DC), 250 VAC, 600 µH, threaded bolt M4, FN2020-20-08
Order No.:
 71D0041
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2020-20-08
30 pcs.
30.37 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
1-stage filter
X2 150 nF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
threaded bolt M4
250 V
100 °C
20 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 1 A, 250 V (DC), 250 VAC, 12 mH, Wire, FN2020-1-07
Order No.:
 71D0033
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2020-1-07
60 pcs.
15.92 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
1-stage filter
X2 150 nF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
Wire
250 V
100 °C
1 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 30 A, 250 V (DC), 250 VAC, 670 µH, threaded bolt M4, FN2020-30-08
Order No.:
 71D0042
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2020-30-08
20 pcs.
44.10 €
0.00 € *
Currently not in stock, we will order for you
470000 Ω
1-stage filter
X2 470 nF, Y2 10 nF
-25 °C
250 VAC
0.0004 MHz
1
threaded bolt M4
250 V
100 °C
30 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 1 A, 250 V (DC), 250 VAC, 12 mH, faston plug 6.3 mm, FN2020-1-06
Order No.:
 71D680
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2020-1-06
60 pcs.
13.83 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
1-stage filter
X2 150 nF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
faston plug 6.3 mm
250 V
100 °C
1 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 6 A, 250 V (DC), 250 VAC, 1 mH, Wire, FN2020-6-07
Order No.:
 71D0036
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2020-6-07
60 pcs.
16.54 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
1-stage filter
X2 150 nF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
Wire
250 V
100 °C
6 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 16 A, 250 V (DC), 250 VAC, 650 µH, threaded bolt M4, FN2020-16-08
Order No.:
 71D0040
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2020-16-08
60 pcs.
24.40 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
1-stage filter
X2 150 nF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
threaded bolt M4
250 V
100 °C
16 A
0.00005 MHz
