Schaffner

FN2010-6-06 | Schaffner

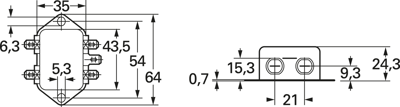

1-stage filter, 50 to 400 Hz, 6 A, 250 V (DC), 250 VAC, 1 mH, faston plug 6.3 mm, FN2010-6-06

default S
front S
default L
front L
Total price
(12.71 € * / pcs.)
12.71 €
Available: 56 pcs.
Quantity
Price per unit*
1 pcs.
12.71 €
5 pcs.
12.11 €
10 pcs.
11.59 €
25 pcs.
10.79 €
*incl. VAT plus shipping costs
Show 17 variants
Description

Product by Schaffner at Bürklin Elektronik

EMC filter, single-phase, type Schaffner FN 2010.

For general-purpose applications; Capacitance: Cx 0.1 µF/Cy 4.7 nF. Leakage current: 0.74 mA. Operating voltage 250 VAC/50 to 60 Hz. Operating frequency: to 400 Hz. Test voltage: 2000 VAC. Connection: solderable 6.3 x 0.8 tab terminals. Test logo: UL, CSA, ENEC 14.

Technical attributes (type, rated current at +40 °C, inductance): FN 2010-6-06, 6.0 A, 1.0 mH

Technical specifications
ohmic resistance 1000000 Ω
Connection faston plug 6.3 mm
Number of phases 1
Version 1-stage filter
Rated Voltage 250 VAC
Inductance per line 1 mH
integrated switch No
Capacity X|Y X2 100 nF, Y2 4.7 nF
max. frequency 0.0004 MHz
max. operating temperature 100 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse No
Rated voltage (DC) 250 V
Rated current 6 A
Show similar products (0)
Logistics
Country of origin CN
Customs tariff number 85363010
Original Packaging Carton with 60 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
1 item with 17 variations
Item description
Price list
Total
ohmic resistance
Version
Capacity X|Y
min. operating temperature
Rated Voltage
max. frequency
Number of phases
Connection
Rated voltage (DC)
max. operating temperature
Rated current
min. frequency
1-stage filter, 50 to 400 Hz, 16 A, 250 V (DC), 250 VAC, 700 µH, faston plug 6.3 mm, FN2010-16-06
Order No.:
 71D670
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2010-16-06
1 pcs.
18.58 €
4 pcs.
17.72 €
8 pcs.
16.95 €
20 pcs.
15.78 €
18.58 € *
Available: 13 pcs.
1000000 Ω
1-stage filter
X2 100 nF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
faston plug 6.3 mm
250 V
100 °C
16 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 6 A, 250 V (DC), 250 VAC, 1 mH, faston plug 6.3 mm, FN2010-6-06
Order No.:
 71D664
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2010-6-06
1 pcs.
12.71 €
5 pcs.
12.11 €
10 pcs.
11.59 €
25 pcs.
10.79 €
12.71 € *
Available: 56 pcs.
1000000 Ω
1-stage filter
X2 100 nF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
faston plug 6.3 mm
250 V
100 °C
6 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 10 A, 250 V (DC), 250 VAC, 800 µH, faston plug 6.3 mm, FN2010-10-06
Order No.:
 71D0003
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2010-10-06
1 pcs.
12.54 €
5 pcs.
11.97 €
10 pcs.
11.44 €
25 pcs.
10.65 €
12.54 € *
Available: 35 pcs.
1000000 Ω
1-stage filter
X2 100 nF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
faston plug 6.3 mm
250 V
100 °C
10 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 20 A, 250 V (DC), 250 VAC, 600 µH, faston plug 6.3 mm, FN2010-20-06
Order No.:
 71D0008
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2010-20-06
50 pcs.
20.27 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
1-stage filter
X2 100 nF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
faston plug 6.3 mm
250 V
100 °C
20 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 60 A, 250 V (DC), 250 VAC, 1 mH, threaded bolt M6, FN2010-60-24
Order No.:
 71D0012
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2010-60-24
5 pcs.
108.60 €
0.00 € *
Currently not in stock, we will order for you
330000 Ω
1-stage filter
X2 1.5 µF, Y2 10 nF
-25 °C
250 VAC
0.0004 MHz
1
threaded bolt M6
250 V
100 °C
60 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 10 A, 250 V (DC), 250 VAC, 800 µH, Wire, FN2010-10-07
Order No.:
 71D0004
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2010-10-07
60 pcs.
14.20 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
1-stage filter
X2 100 nF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
Wire
250 V
100 °C
10 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 3 A, 250 V (DC), 250 VAC, 2.5 mH, Wire, FN2010-3-07
Order No.:
 71D0001
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2010-3-07
60 pcs.
13.66 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
1-stage filter
X2 100 nF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
Wire
250 V
100 °C
3 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 20 A, 250 V (DC), 250 VAC, 600 µH, threaded bolt M4, FN2010-20-08
Order No.:
 71D0010
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2010-20-08
50 pcs.
25.34 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
1-stage filter
X2 100 nF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
threaded bolt M4
250 V
100 °C
20 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 12 A, 250 V (DC), 250 VAC, 700 µH, Wire, FN2010-12-07
Order No.:
 71D0006
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2010-12-07
60 pcs.
14.47 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
1-stage filter
X2 100 nF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
Wire
250 V
100 °C
12 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 30 A, 250 V (DC), 250 VAC, 700 µH, threaded bolt M4, FN2010-30-08
Order No.:
 71D0011
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2010-30-08
20 pcs.
35.63 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
1-stage filter
X2 470 nF, Y2 10 nF
-25 °C
250 VAC
0.0004 MHz
1
threaded bolt M4
250 V
100 °C
30 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 6 A, 250 V (DC), 250 VAC, 1 mH, Wire, FN2010-6-07
Order No.:
 71D0002
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2010-6-07
60 pcs.
13.93 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
1-stage filter
X2 100 nF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
Wire
250 V
100 °C
6 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 1 A, 250 V (DC), 250 VAC, 12 mH, faston plug 6.3 mm, FN2010-1-06
Order No.:
 71D660
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2010-1-06
60 pcs.
11.65 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
1-stage filter
X2 100 nF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
faston plug 6.3 mm
250 V
100 °C
1 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 12 A, 250 V (DC), 250 VAC, 700 µH, faston plug 6.3 mm, FN2010-12-06
Order No.:
 71D0005
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2010-12-06
60 pcs.
12.58 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
1-stage filter
X2 100 nF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
faston plug 6.3 mm
250 V
100 °C
12 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 3 A, 250 V (DC), 250 VAC, 2.5 mH, faston plug 6.3 mm, FN2010-3-06
Order No.:
 71D662
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2010-3-06
60 pcs.
11.86 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
1-stage filter
X2 100 nF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
faston plug 6.3 mm
250 V
100 °C
3 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 1 A, 250 V (DC), 250 VAC, 12 mH, Wire, FN2010-1-07
Order No.:
 71D0000
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2010-1-07
60 pcs.
13.39 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
1-stage filter
X2 100 nF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
Wire
250 V
100 °C
1 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 16 A, 250 V (DC), 250 VAC, 700 µH, Wire, FN2010-16-07
Order No.:
 71D0007
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2010-16-07
60 pcs.
20.06 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
1-stage filter
X2 100 nF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
Wire
250 V
100 °C
16 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 20 A, 250 V (DC), 250 VAC, 600 µH, Wire, FN2010-20-07
Order No.:
 71D0009
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2010-20-07
50 pcs.
23.30 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
1-stage filter
X2 100 nF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
Wire
250 V
100 °C
20 A
0.00005 MHz
*incl. VAT plus shipping costs
