FN2010-16-06 | Schaffner
1-stage filter, 50 to 400 Hz, 16 A, 250 V (DC), 250 VAC, 700 µH, faston plug 6.3 mm, FN2010-16-06
Unit Price (€ / pc.)
29.9404 € *
Available: 34 pcs.
Total Price:
29.94 € *
Price list
Quantity
Price per unit*
1 pcs.
29.9404 €
5 pcs.
28.1316 €
15 pcs.
27.0725 €
60 pcs.
25.6207 €
120 pcs.
24.9067 €
*incl. VAT plus shipping costs
Subject to prior sale

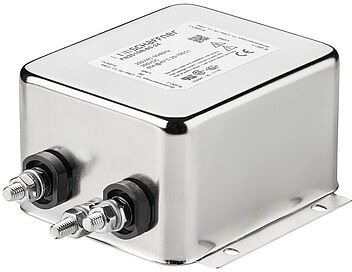

EMC filter, single-phase, type Schaffner FN 2010.
For general-purpose applications; Capacitance: Cx 0.1 µF/Cy 4.7 nF. Leakage current: 0.74 mA. Operating voltage 250 VAC/50 to 60 Hz. Operating frequency: to 400 Hz. Test voltage: 2000 VAC. Connection: solderable 6.3 x 0.8 tab terminals. Test logo: UL, CSA, ENEC 14.

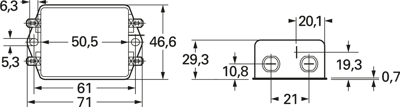

EMC filters, 71 mm length, 29.3 mm height, type FN 2010.
Technical attributes (type, rated current at +40 °C, inductance): FN 2010-16-06, 16 A, 0.7 mH
Technical specifications
| Filter | Property | Value |
|---|---|---|
| integrated switch | No | |
| Rated voltage (DC) | 250 V | |
| Connection | faston plug 6.3 mm | |
| Rated Voltage | 250 VAC | |
| ohmic resistance | 1 MΩ | |
| Inductance per line | 700 µH | |
| Capacity X|Y | X2 100 nF, Y2 4.7 nF | |
| Number of phases | 1 | |
| With fuse | No | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -25 °C | |
| Version | 1-stage filter | |
| max. frequency | 400 Hz | |
| min. frequency | 50 Hz | |
| Rated current | 16 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Country of origin | CN |
| Original Packaging | Carton with 60 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
